7.11.3 COPY_BLK

Function​

The COPY_BLK instruction moves data from one storage area (source range) to another storage area (destination range). You can copy a complete variable or a partial member of an array into another complete variable or a partial member of an array

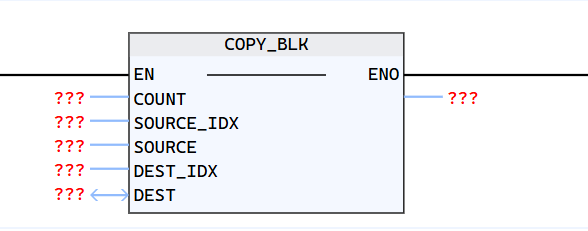

LD graphics​

alt text

Interface variableDeclarationData typeDescription
COUNTInputUDINTThe number of source elements to be copied
If no array is specified in the source parameter, the user needs to set the value of the actual parameter COUNT to "1"; otherwise the copy fails
SOUTCE_IDXInputDINTDetermine the starting point of the storage area to be copied:
The SOURCE_IDX parameter will be calculated from 0;
Corresponds to the first element of the original array
If the SOURCE argument is not specified ARRAY or only an element of ARRAY is specified,then the user needs to assign the value of the SOURCE_IDX actual parameter to "0"; otherwise the copy fails
SOURCEInputANY_TYPESource variable name to be copied
DEST_IDXInputDINTDetermine the starting point of the target storage area:
The DEXT_IDX parameter will be calculated from 0;
Corresponds to the first element of the target array;
If not specified in the DEST actual parameter Any ARRAY or only an element of ARRAY is specified,then the user needs to assign the value of the DEST_IDX actual parameter to "0"; otherwise the copy fails
DESTIN_OUTANY_TYPEVariable name of the destination area to which the contents of the source block will be copied
Function nameReturn valueINTFunction execution feedback error message
warning
  • This function supports any type of variables such as STRING and UDT types (ANY_TYPE does not include FB type), and copy of arrays
  • Use with caution when the types of variables or array member variables are inconsistent, as data may not be aligned and cause data confusion
  • The number of copied elements is not allowed to exceed the selected source range and target range. If the range is exceeded, the data copy will not be performed

Corresponding syntax​

  • COUNT: Number of copied elements
  • SOURCE_IDX: starting point of the total number of copied elements
  • DEST_IDX: starting point of target storage area

Return value error code description​

Error code (hexadecimal code)Description
0000COPY completed; the number of copied elements does not exceed the selected source range and target range, and the source and target data types are consistent
0001COPY completed; the number of copied elements does not exceed the selected source range and target range, but the source and target data types are inconsistent
8151The SOURCE parameter cannot be accessed. Unable to copy
8153Error in parameter SOURCE while generating code. Unable to copy
8281The value of parameter COUNT is less than or equal to 0. Unable to copy
8282The value of parameter COUNT is greater than the number of SOURCE array elements. Unable to copy
8283SOURCE is not an array variable, and the value of parameter COUNT is not equal to 1. Unable to copy
8381The value of parameter SOURCE_IDX is less than 0. Unable to copy
8382The value of parameter SOURCE_IDX exceeds the upper limit of the SOURCE array. Unable to copy
8383SOURCE is not an array variable, and the value of parameter SOURCE_IDX is not equal to 0. Unable to copy
8284The value of parameter COUNT + the value of parameter SOURCE_IDX is greater than the number of SOURCE array elements. Unable to copy
8481The value of parameter DEST_IDX is less than 0. Unable to copy
8482The parameter DEST_IDX value exceeds the limit of the DEST array. Unable to copy
8483The parameter DEST is not an array variable, and the value of the parameter DEST_IDX is not equal to 0. Unable to copy
8484For the data to be copied, the target range of the variable pointed to by the DEST parameter is smaller than the source range to be copied. Unable to copy
8551The DEST parameter cannot be accessed. Unable to copy
8552An error occurred while generating code for parameter DEST. Unable to copy

Example​

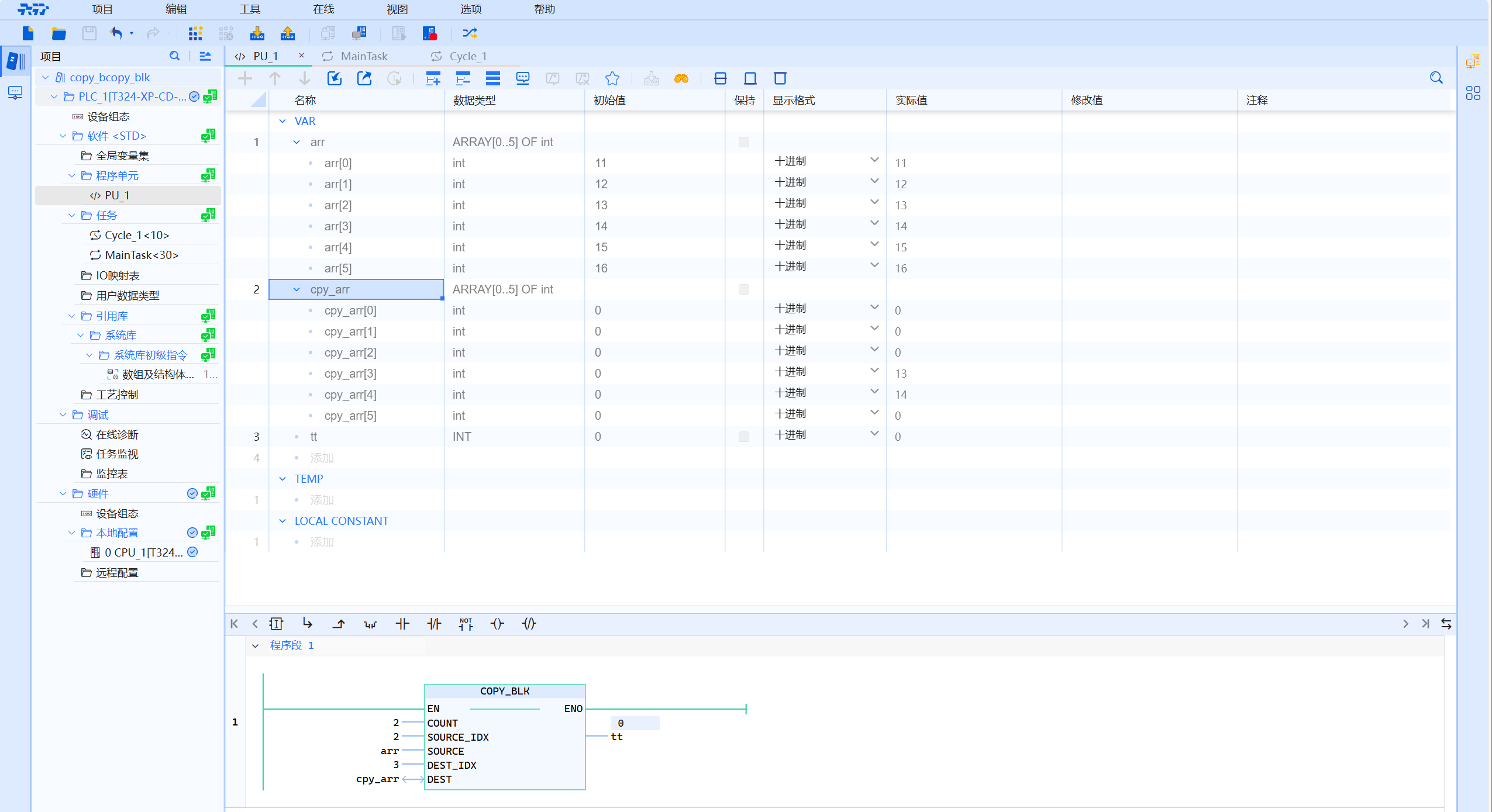

  • LD sample pictures are shown below:

alt text

  • ST example is shown in the following code:
ss:=COPY_BLK(
    COUNT:=1,
    SOURCE_IDX:=sarr[11],
    SOURCE:=sarr,
    DEST_IDX:=darr[3],
    DEST:=darr
);
