7.4.5 EXP

Function

Calculate the index value

LD graphics

Parameter description

floating point number

Interface variable	Declaration	Data type	Description
X	Var_Input	ANY_REAL	Operand
Function name	Return value	ANY_REAL	Output result

warning

• ANY_REAL: including floating point numbers (REAL, LREAL)

Example

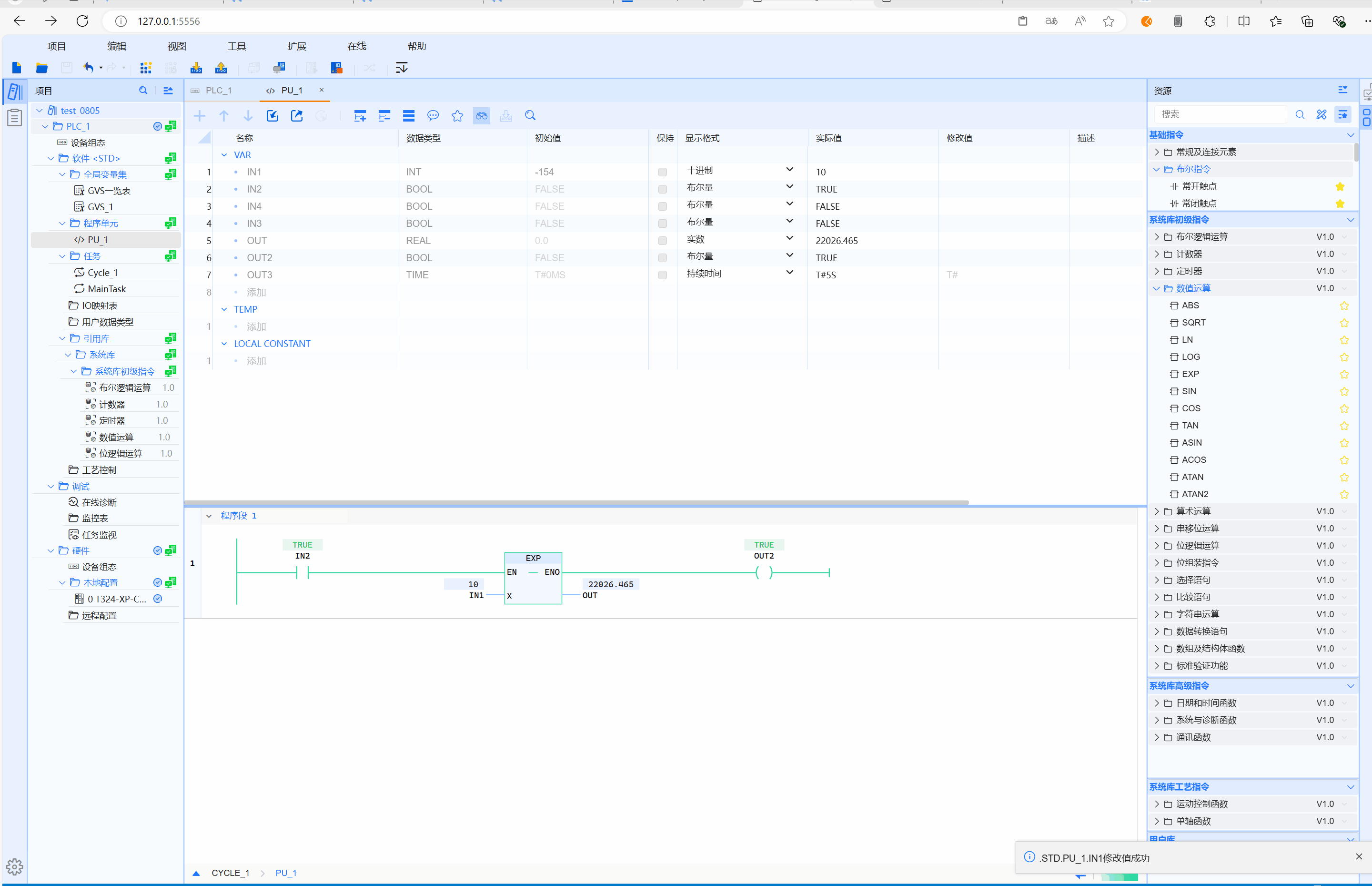

• LD example is shown in the following animation:

• ST example is shown in the following code:

OUT:=EXP(IN1);

Trigonometric functions note

• The REAL values ​​entered in the trigonometric function are expressed in radians in the function block
• For example, sin30 refers to 30 radians, not 30 degrees, and the result of sin30 is -0.98803163
