7.7.3 MIN

Function

Take the minimum value function and assign the smallest value in IN1...INn to OUT

LD graphics

Parameter description

Interface variable	Declaration	Data type	Description
IN1	Var_Input	ANY_ELEMENTARY	Comparison number 1
IN2	Var_Input	ANY_ELEMENTARY	Comparison number 2
Function name	Return value	ANY_ELEMENTARY	Output minimum value

warning

• The parameter types of parameters IN1, IN2 and OUT must be the same, otherwise the function cannot be executed
• MIN is an extensible function, and inputs can be added by clicking the "+" in the graph
• ANY_ELEMENTARY includes all basic types (bit strings, integers, floating point numbers, characters and strings, times and dates)

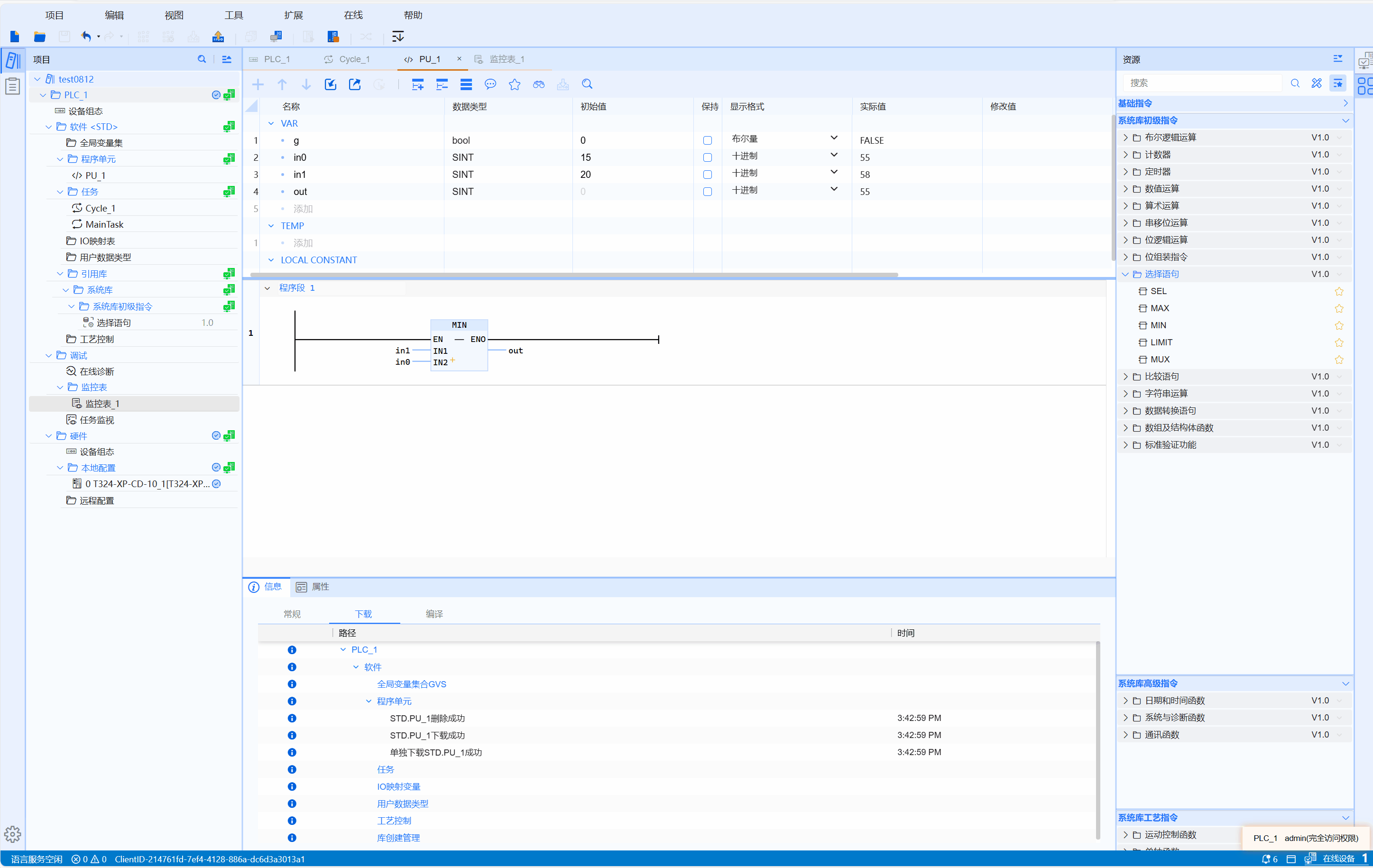

• LD example is shown in the following animation:

• ST example is shown in the following code:

OUT:=MIN(IN1:=10,IN2:=100);
OUT2:=MIN(IN1:=10,IN2:=100,IN3:=1000,IN4:=10000,IN5:=50000);
