6.1.3.2 Boolean Instructions

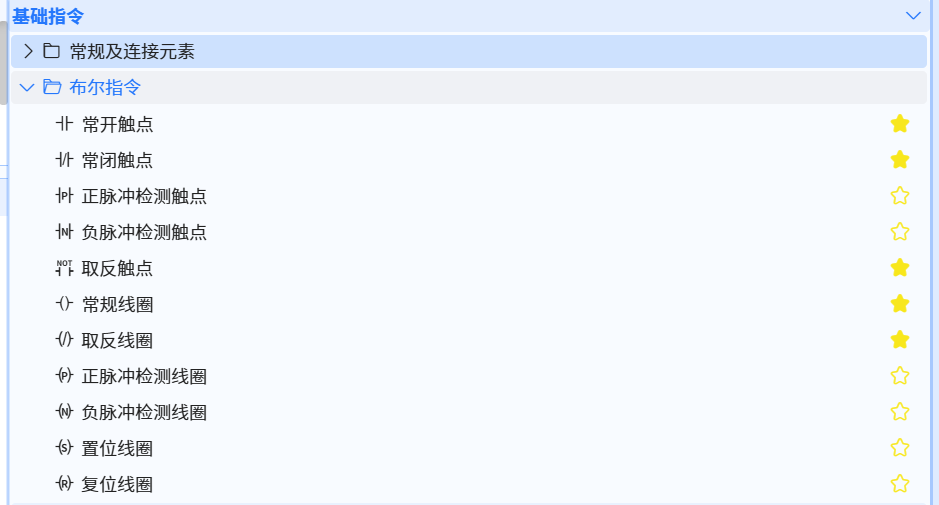

Boolean instruction

Contact

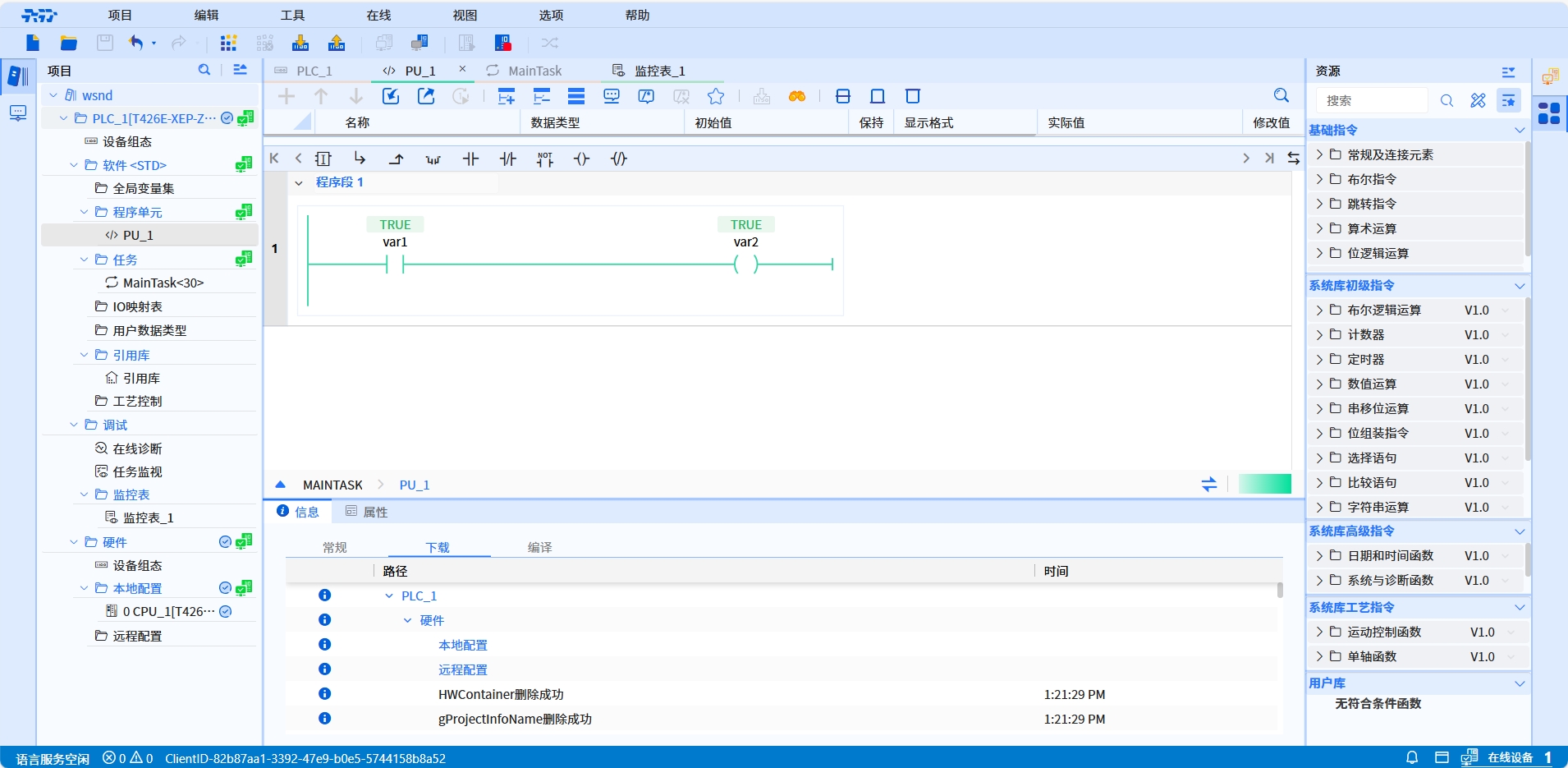

Normally open contact

• Function description: Normally open contact

• Example:

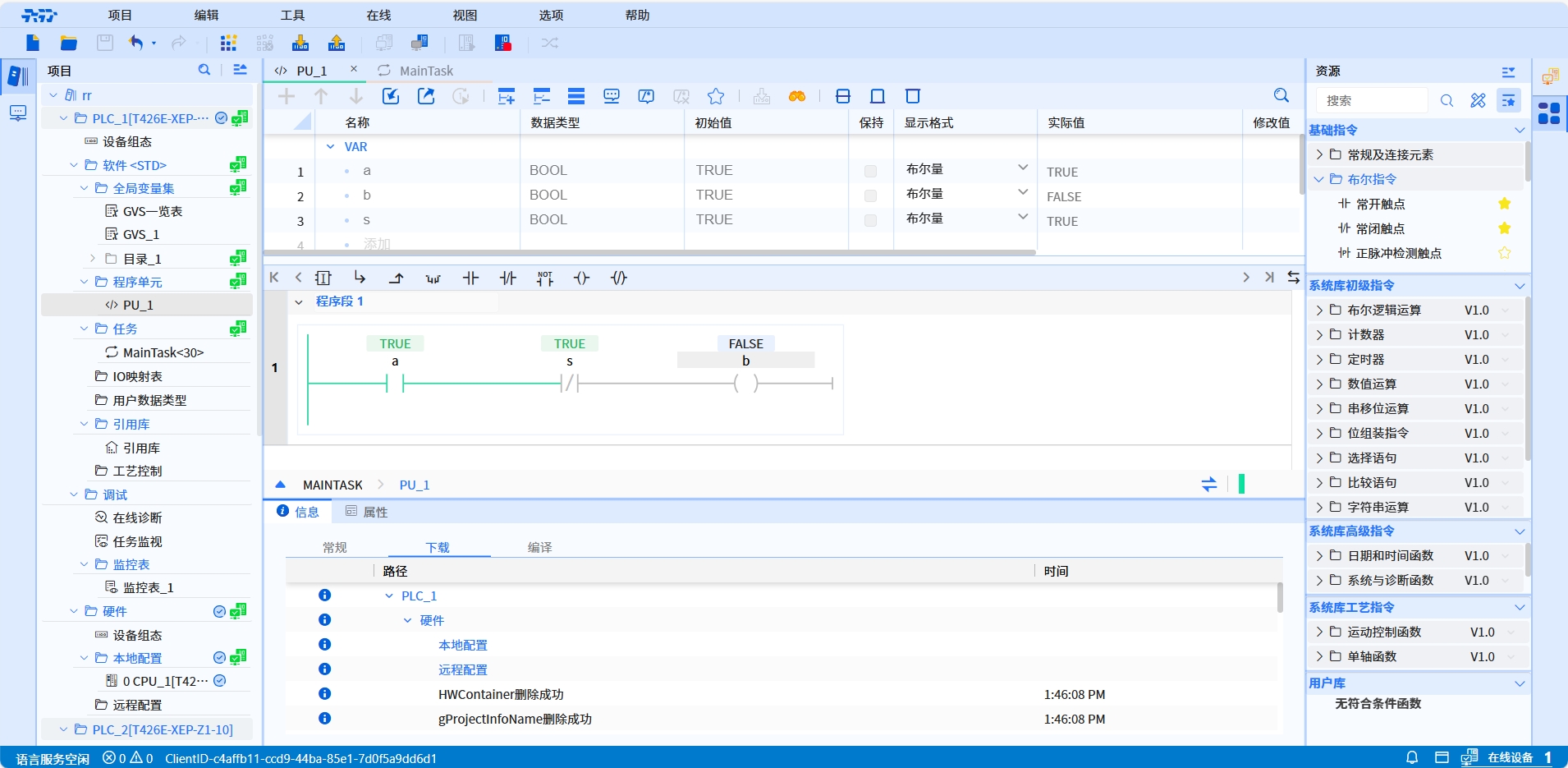

Normally closed contact

• Function description: Normally closed contact

• Example:

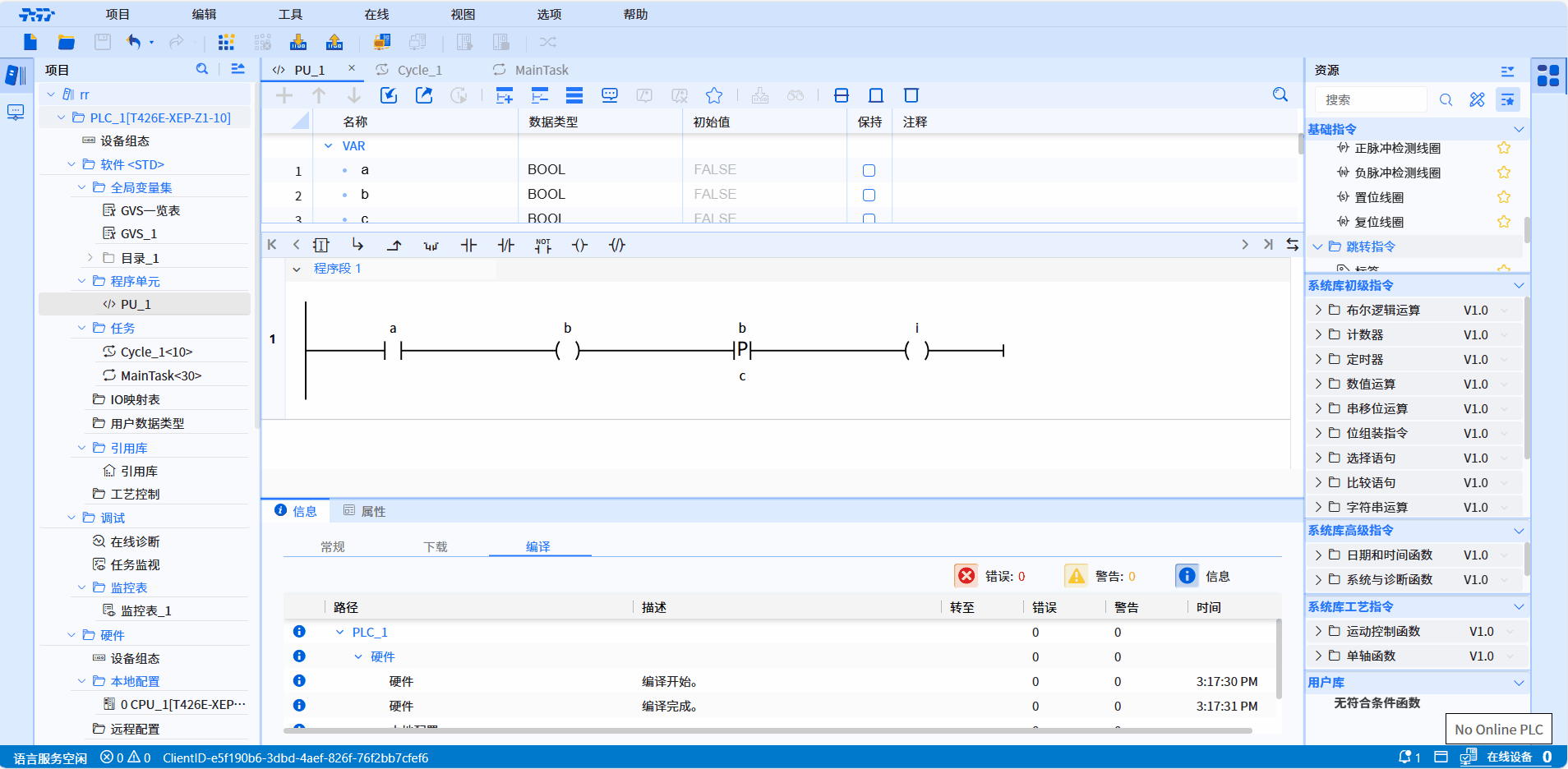

Positive pulse detection contact

• Function description: When the status of the left horizontal line is ON, the rising edge of the variable above the detection contact is passed to the right connection

• Example:

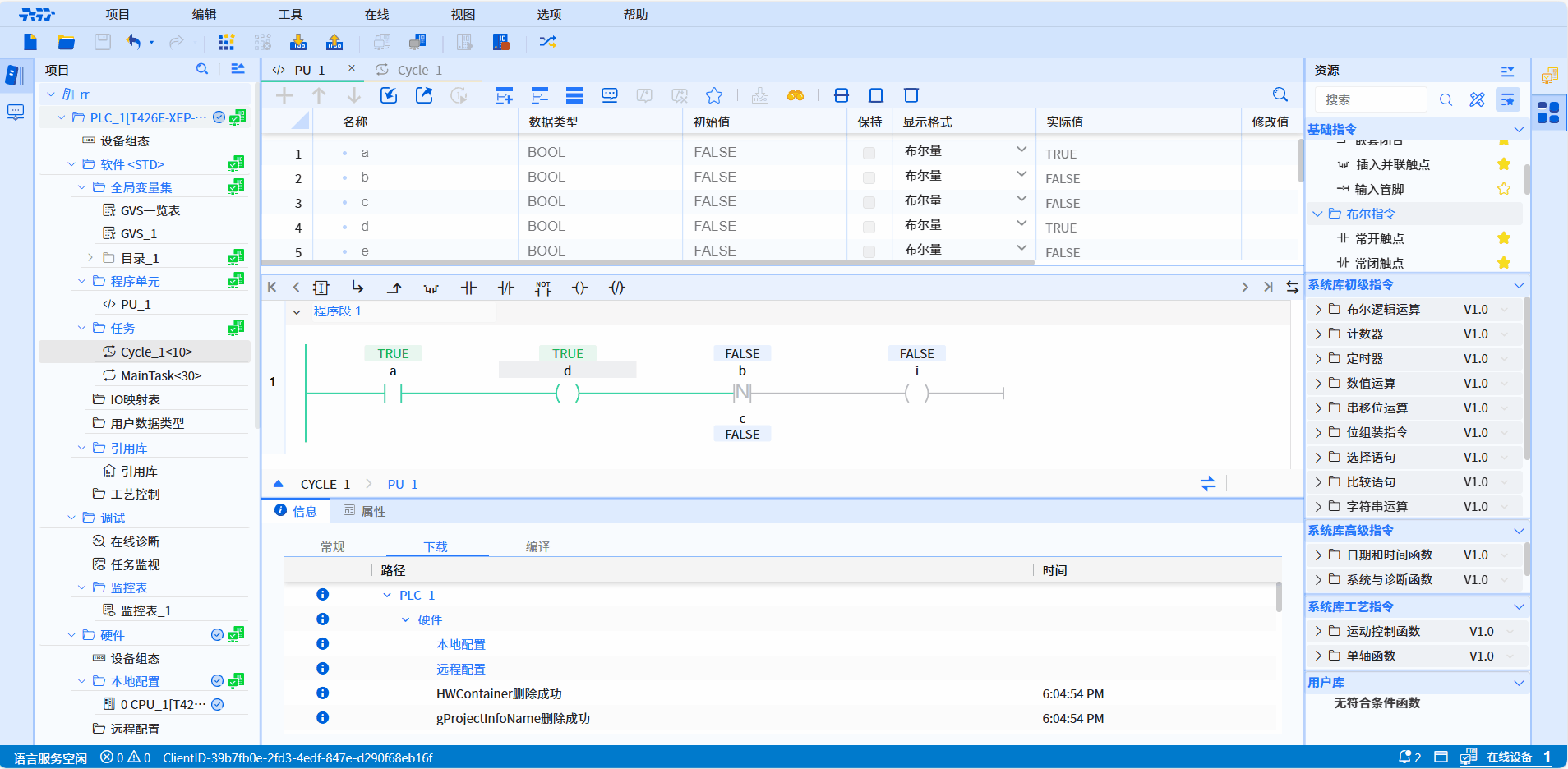

Negative pulse detection contact

• Function description: When the status of the left horizontal line is ON, the falling edge of the variable above the detection contact is passed to the right connection

• Example

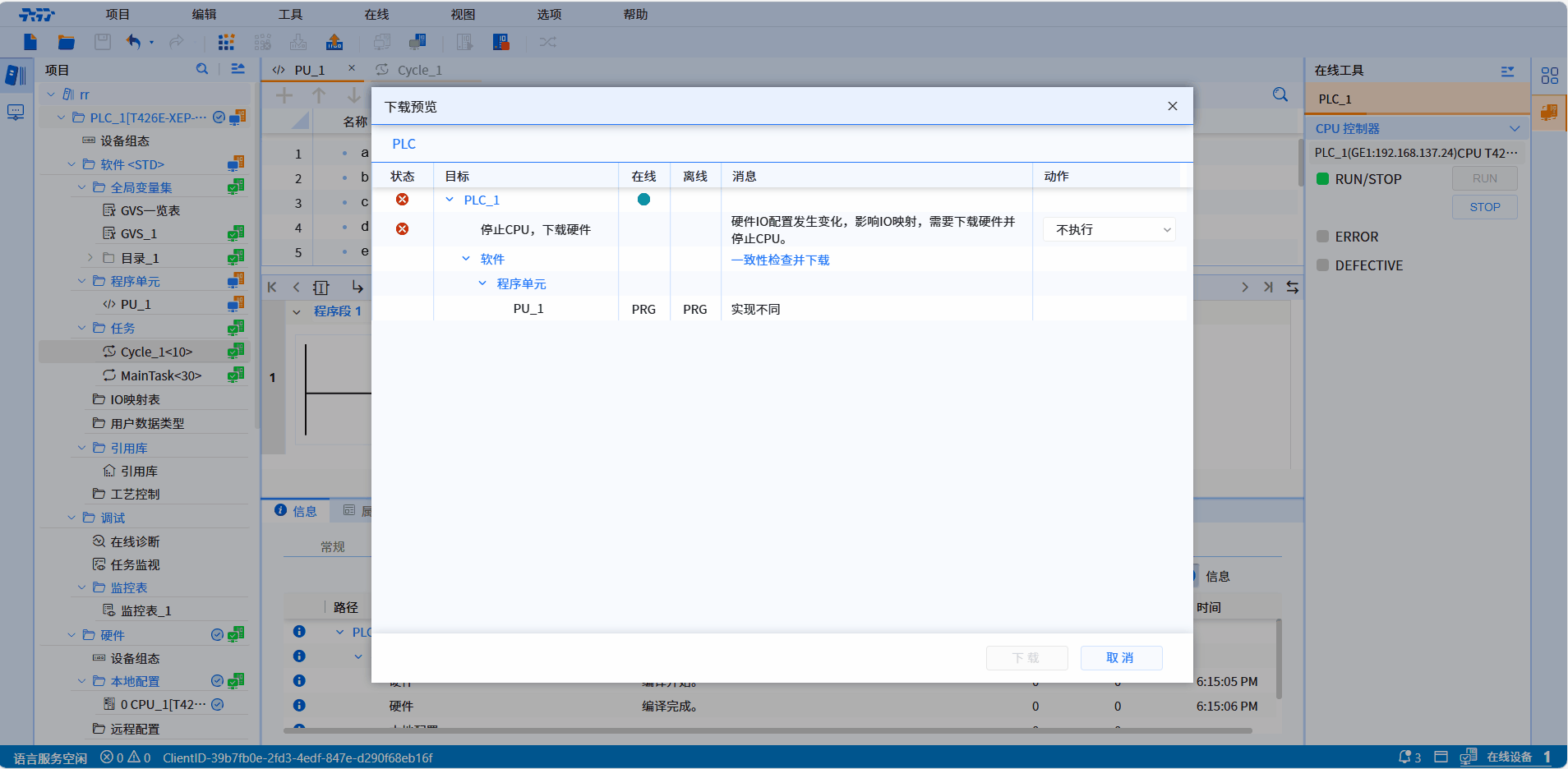

Take the reverse contact point

• Function description: Invert the status of the left horizontal line and copy it to the right horizontal line

• Example:

Coil

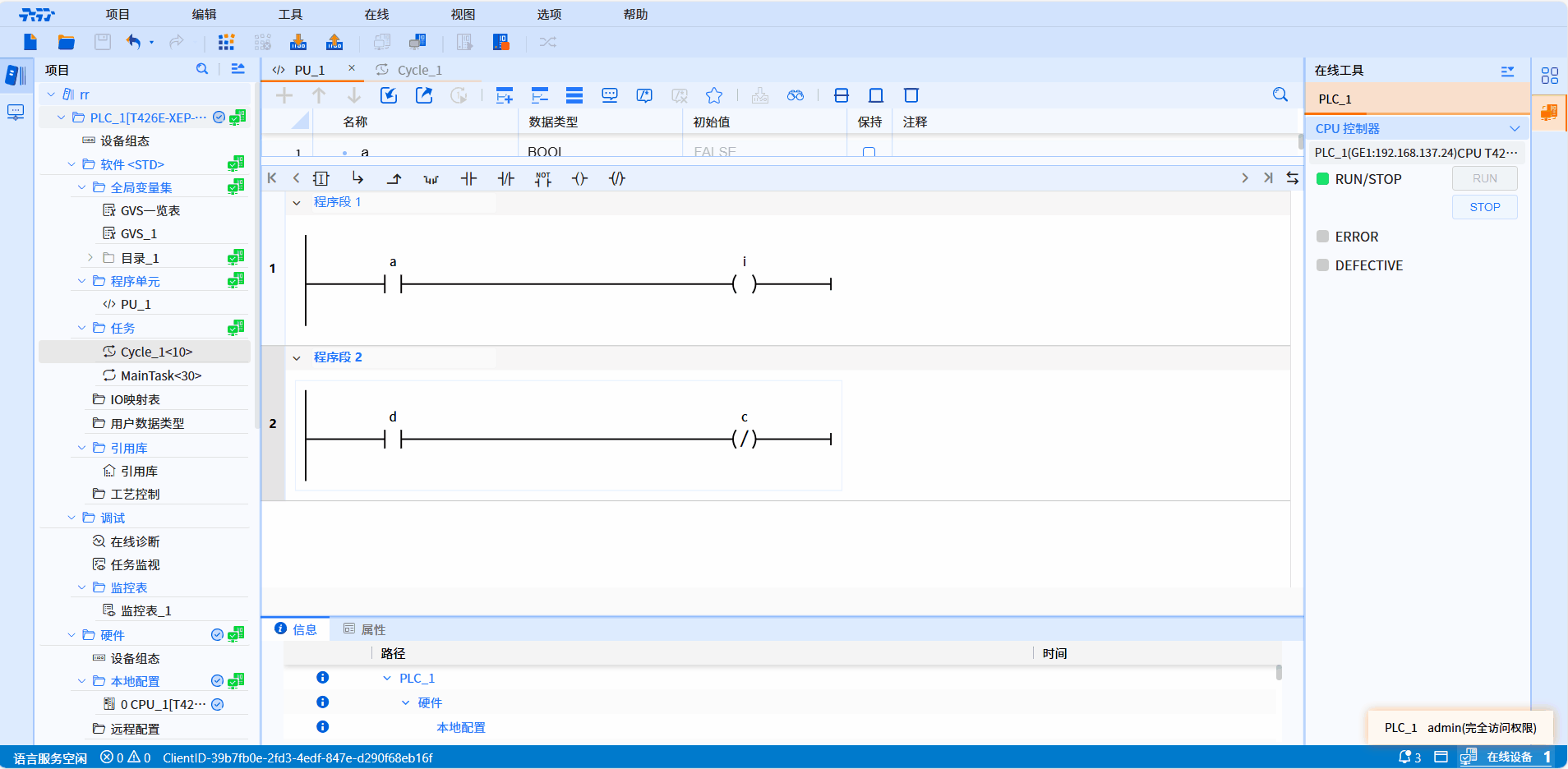

Conventional Coil

• Function description: assignment

• Example:

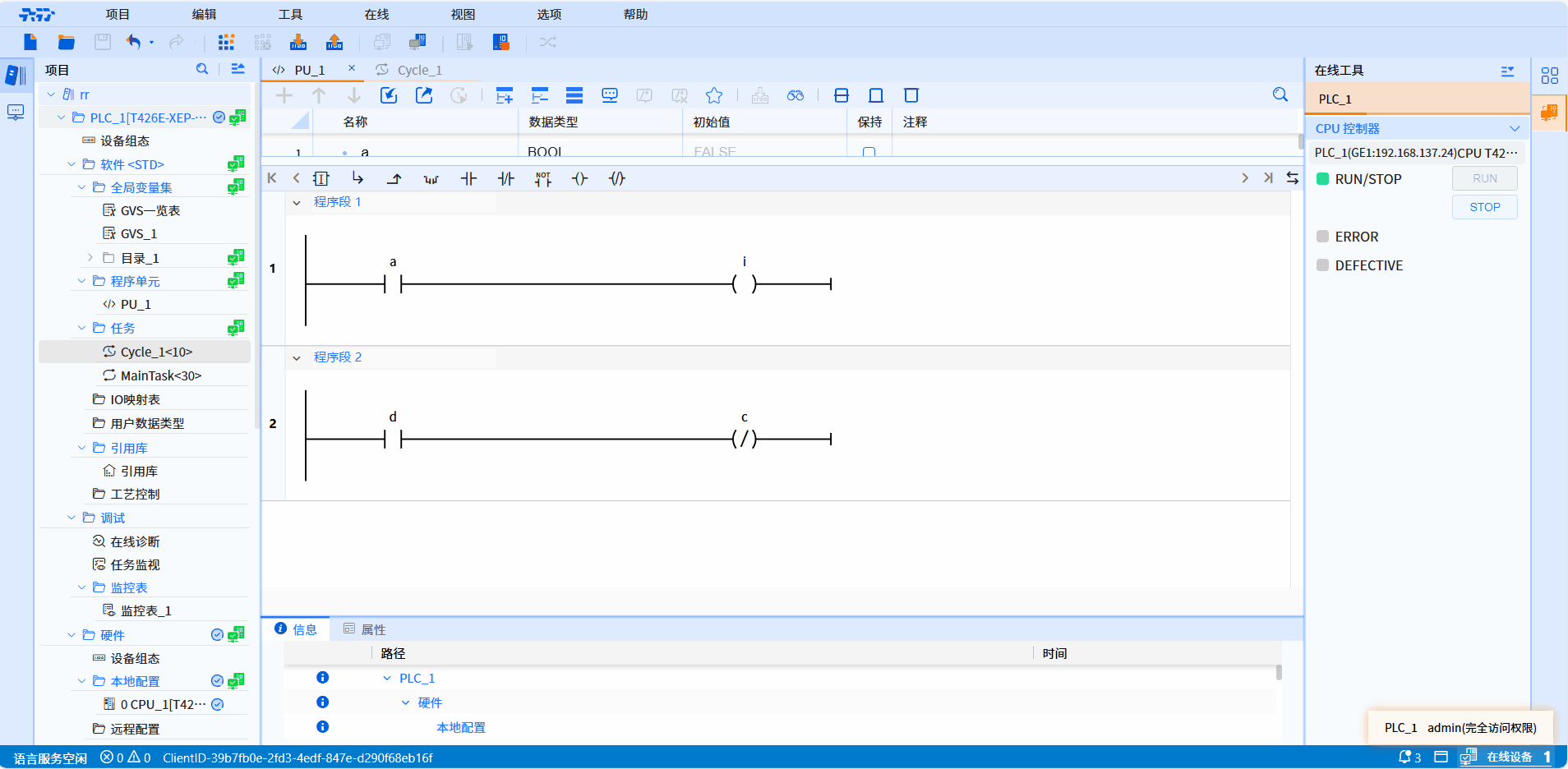

Reverse coil

• Function description: negation and assignment

• Example:

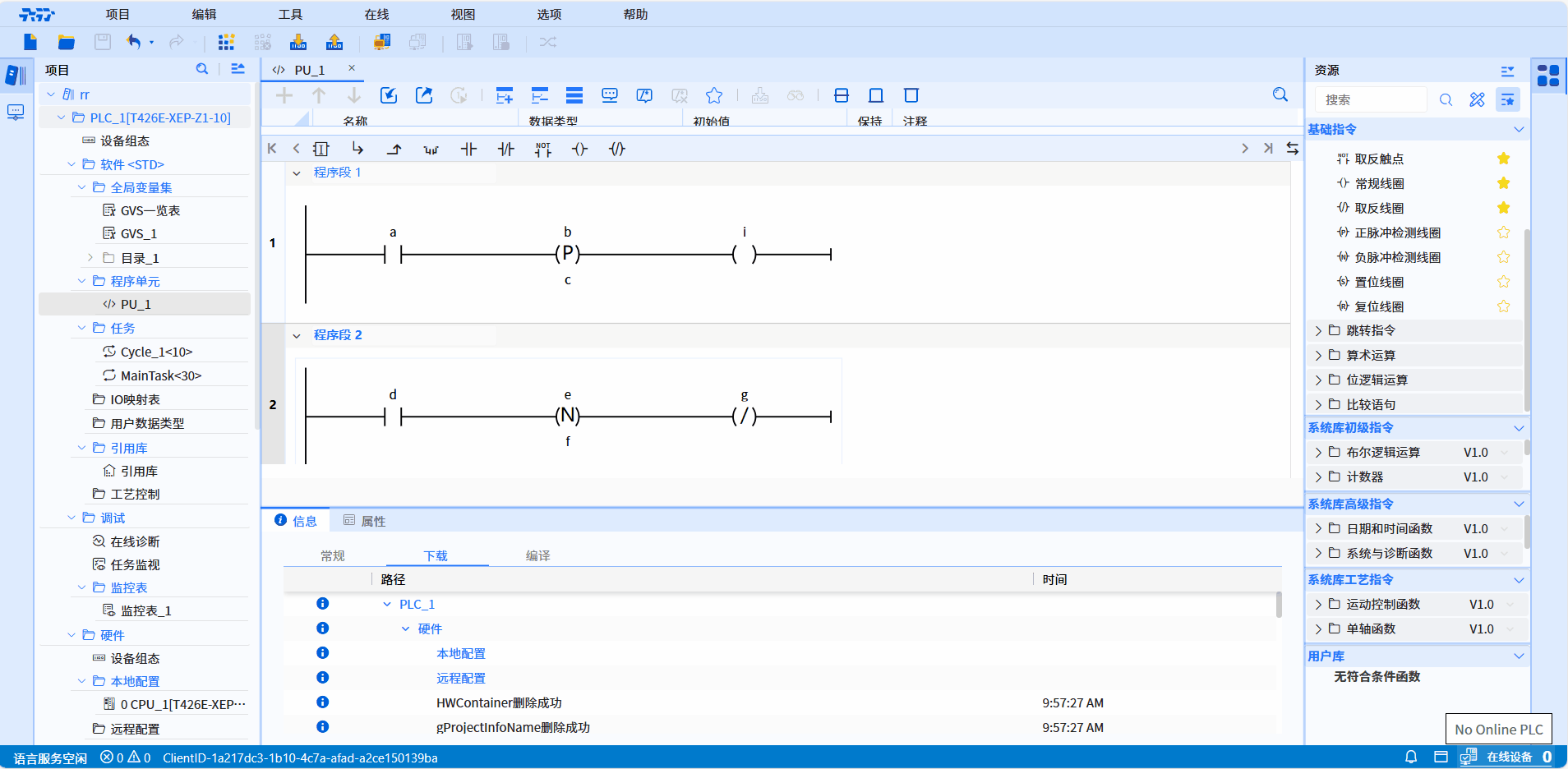

Positive pulse detection coil

• Function description: Detect the rising edge of the left connecting line and transfer it to the variable above the coil

• Example:

Negative pulse detection coil

• Function description: Detect the falling edge of the left connecting line and transfer it to the variable above the coil

• Example

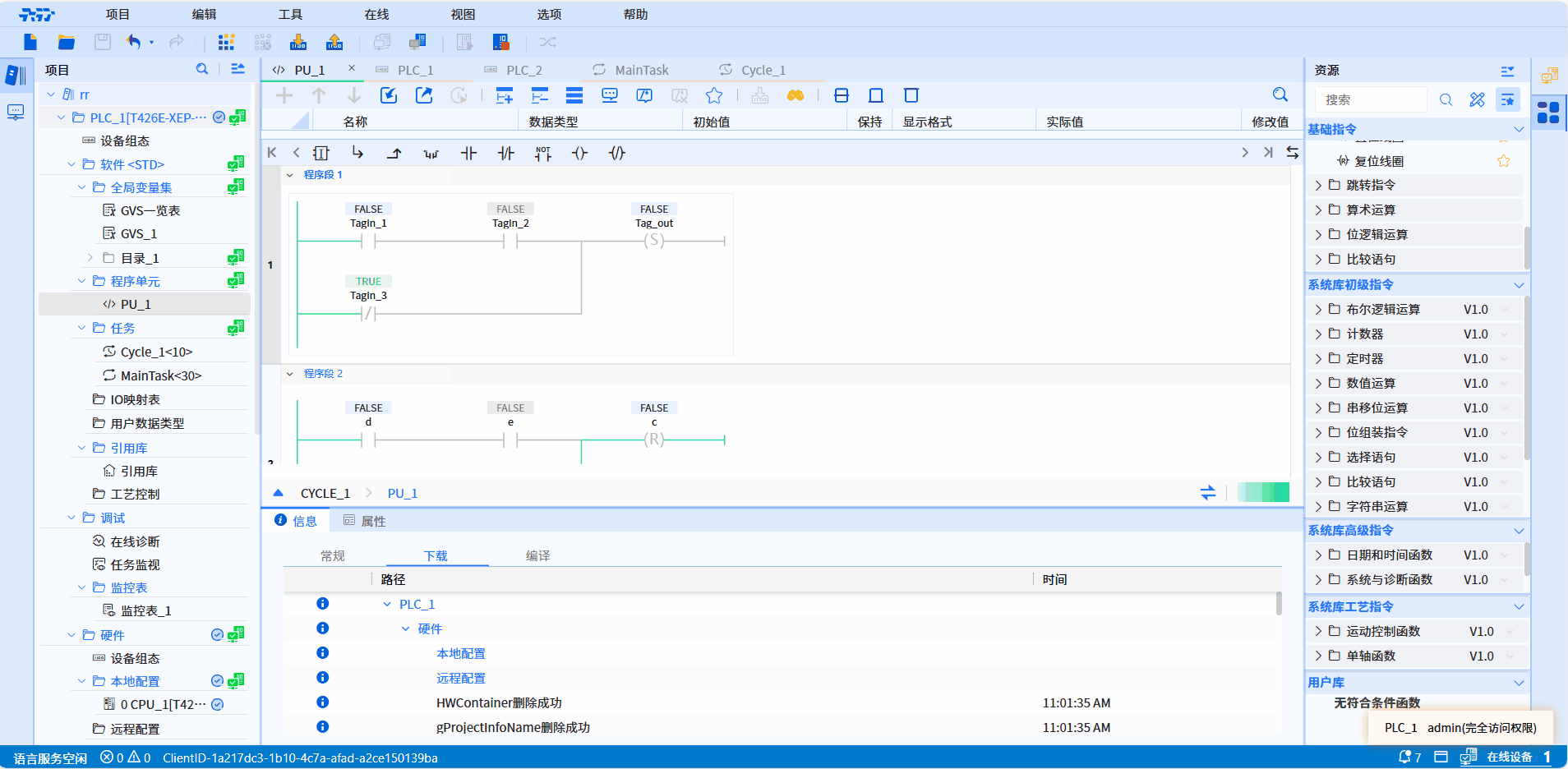

Set Coil

• Function description: Set output, use the "set output" instruction to set the signal status of the specified operand to "1"

• Example:

  • The "TagOut" operand is set when one of the following conditions is met

  • The signal status of the operands "TagIn_1" and "TagIn_2" is "1"

  • The signal state of the operand "TagIn_3" is "0"

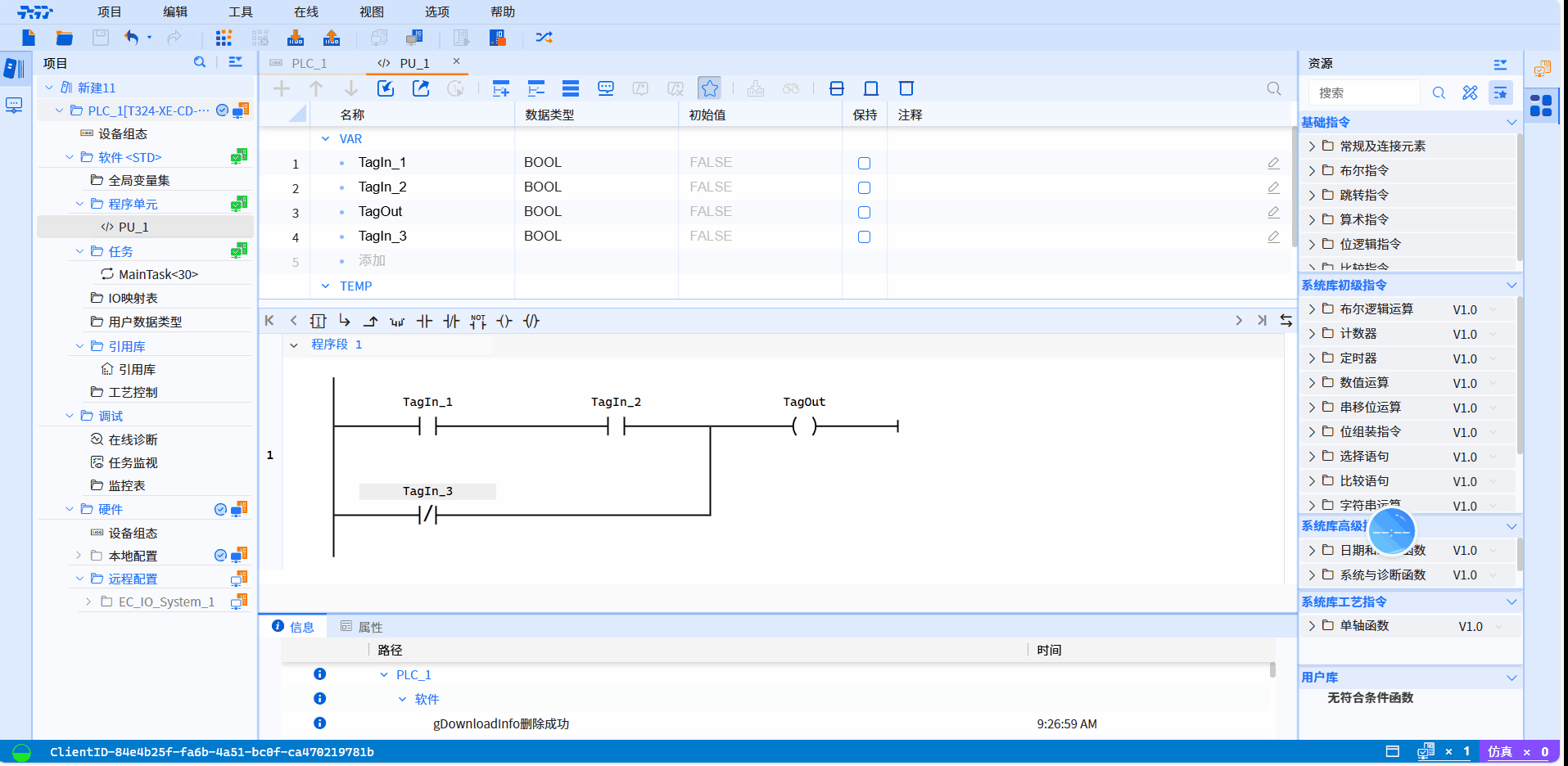

Reset coil

• Function description: Reset output, user can use the "reset output" instruction to reset the signal state of the specified operand to "0"

• Example:

  • When any of the following conditions is met, the operand "TagOut" can be reset

  • The signal status of the operands "TagIn_1" and "TagIn_2" is "1"

  • The signal state of the operand "TagIn_3" is "0"
