6.1.3.1 General and Connecting Elements

General and Connected Element

alt text

warning
  • Left power cord, right power cord, horizontal connection, vertical connection

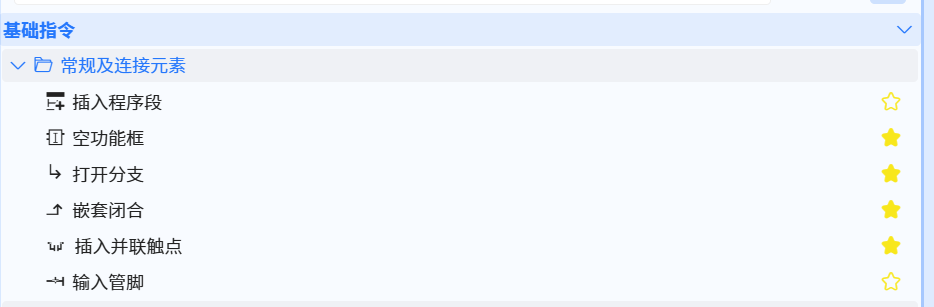

  • System library tools include "Parallel Contacts", "Create Branch", "Nested Closure"

Insert program segment​

  • Function description: Insert program segment

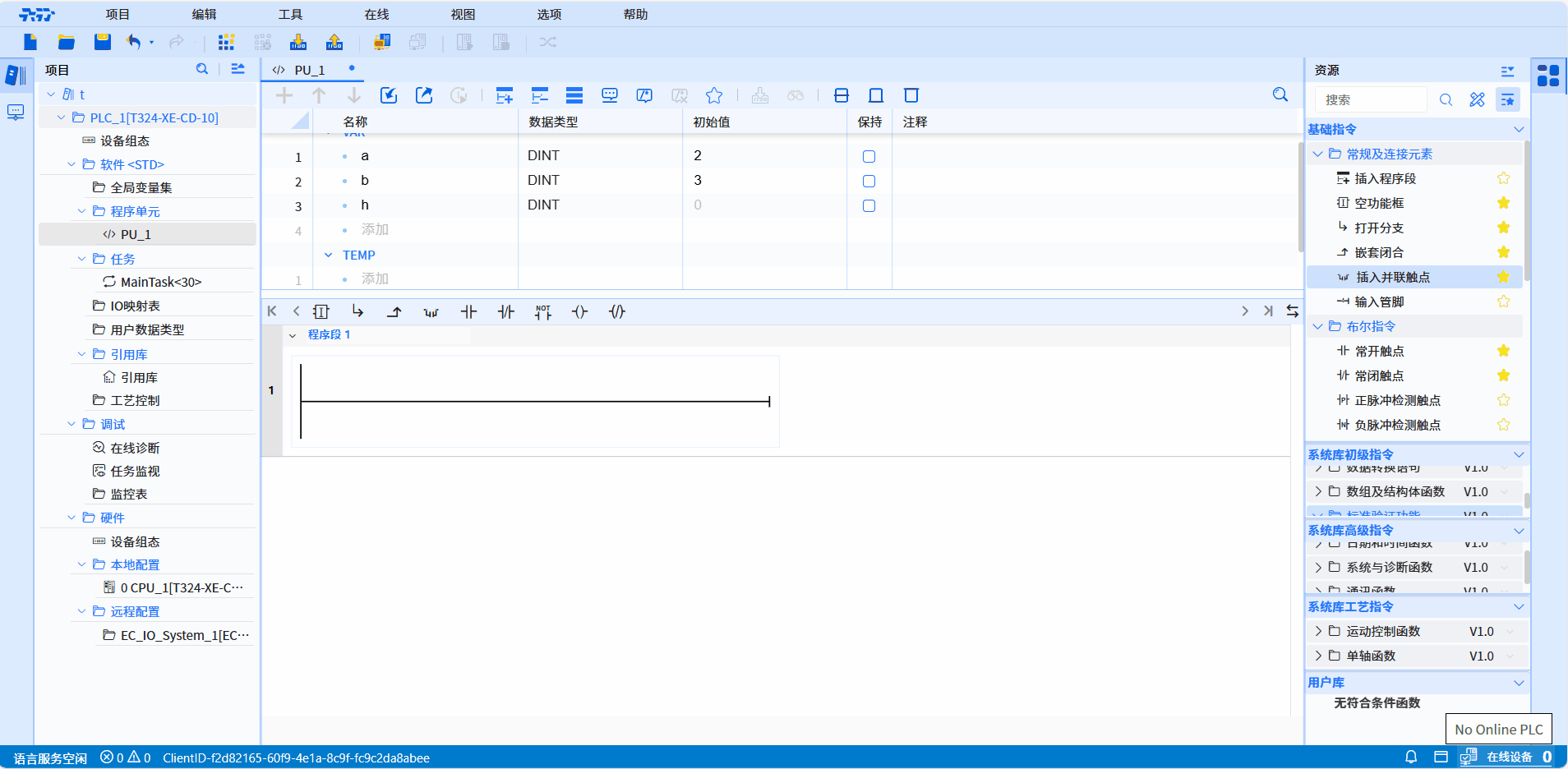

  • Example: alt text

Empty function box​

  • Function description: Blank function box, used to insert other function instructions

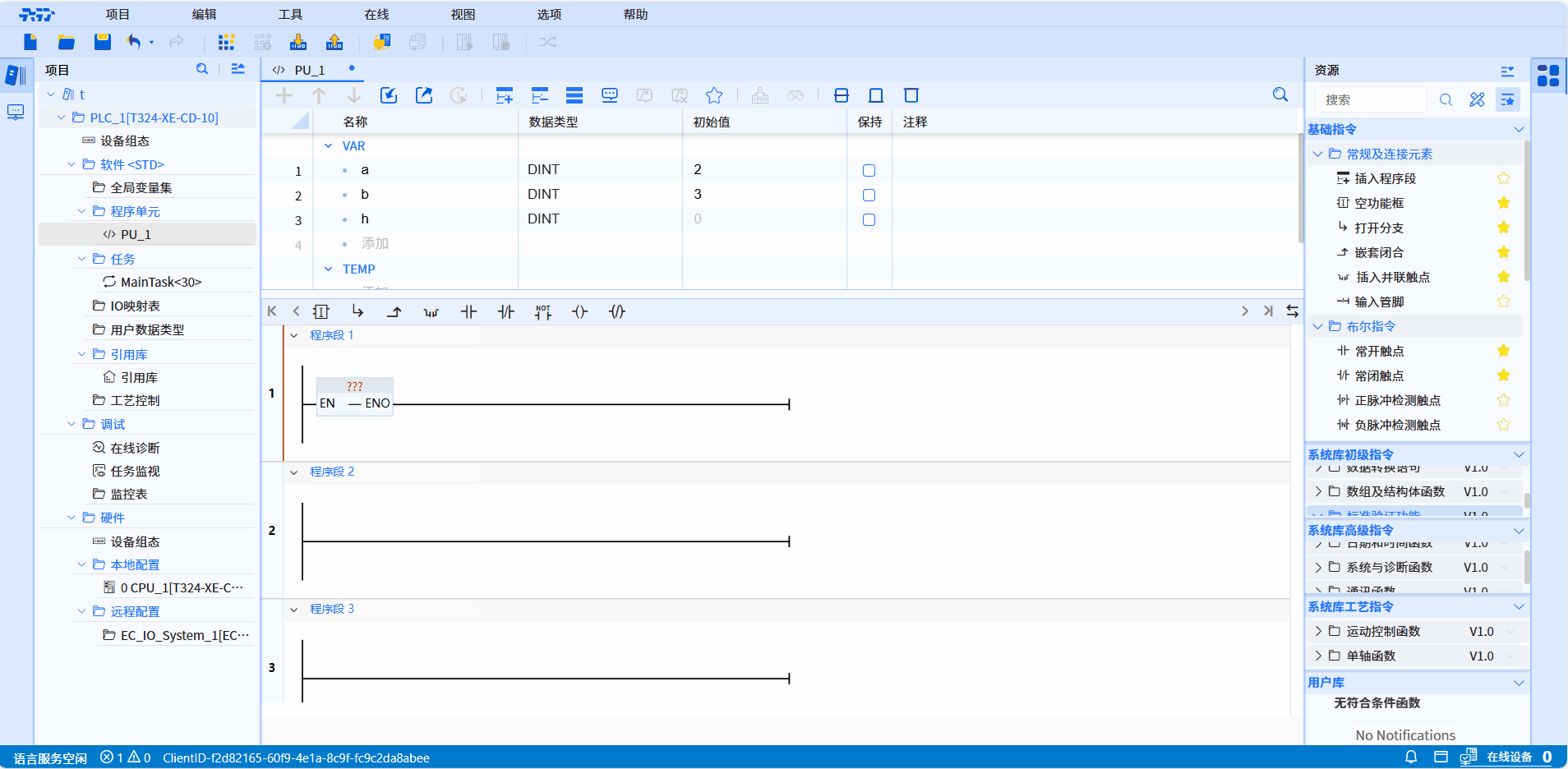

  • Example alt text

NOTE
  • Except for special instructions, the system will add EN/ENO by default

Insert Parallel Branch​

  • Function description: Insert a parallel branch

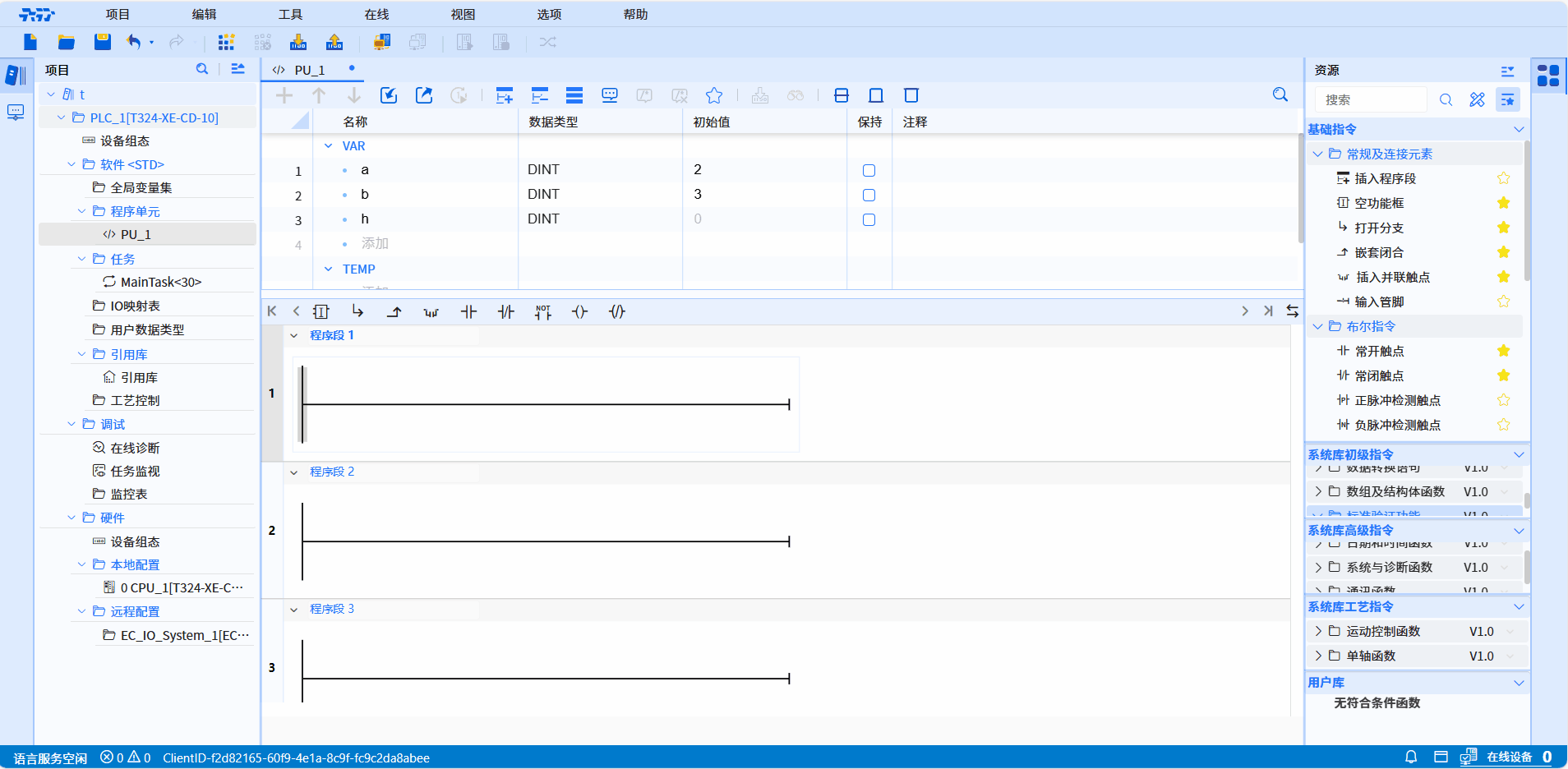

  • Example alt text

Nested closure​

Function description: Close branch

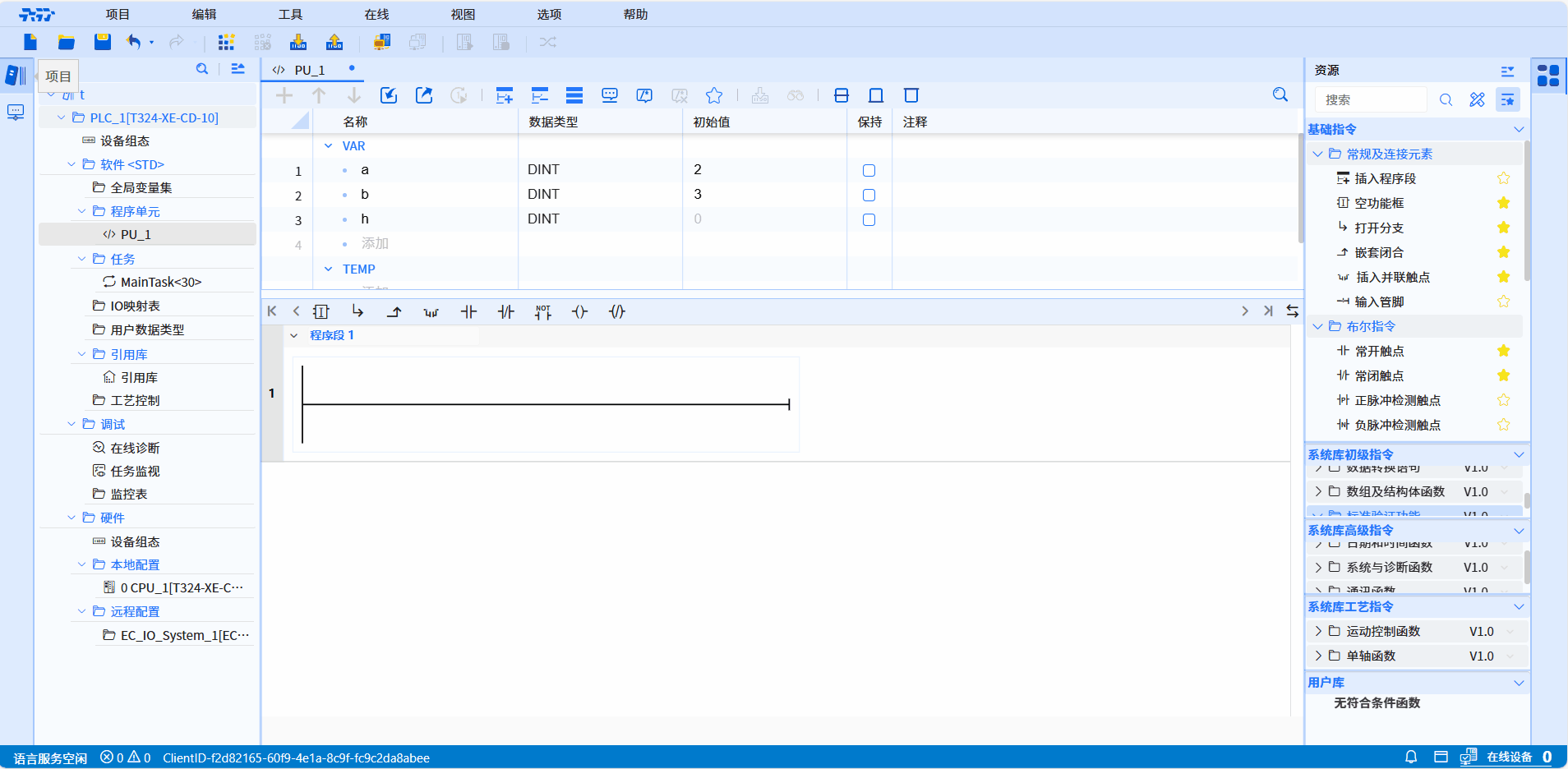

  • Example: alt text

Insert parallel contact (downward)​

  • Function description: Insert parallel contacts

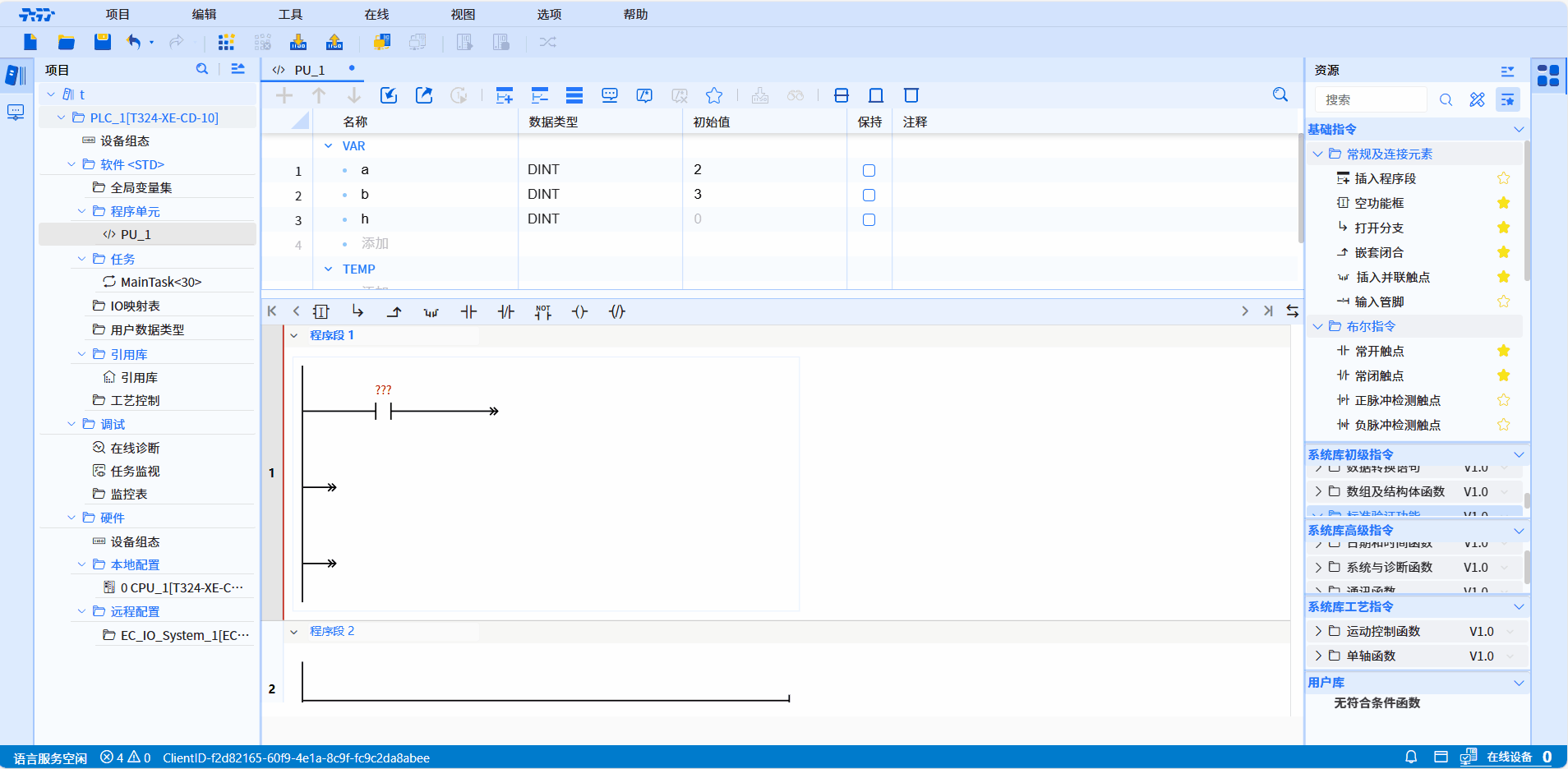

  • Example: alt text

Input pins​

  • Function description: Insert the input pin of the expandable block

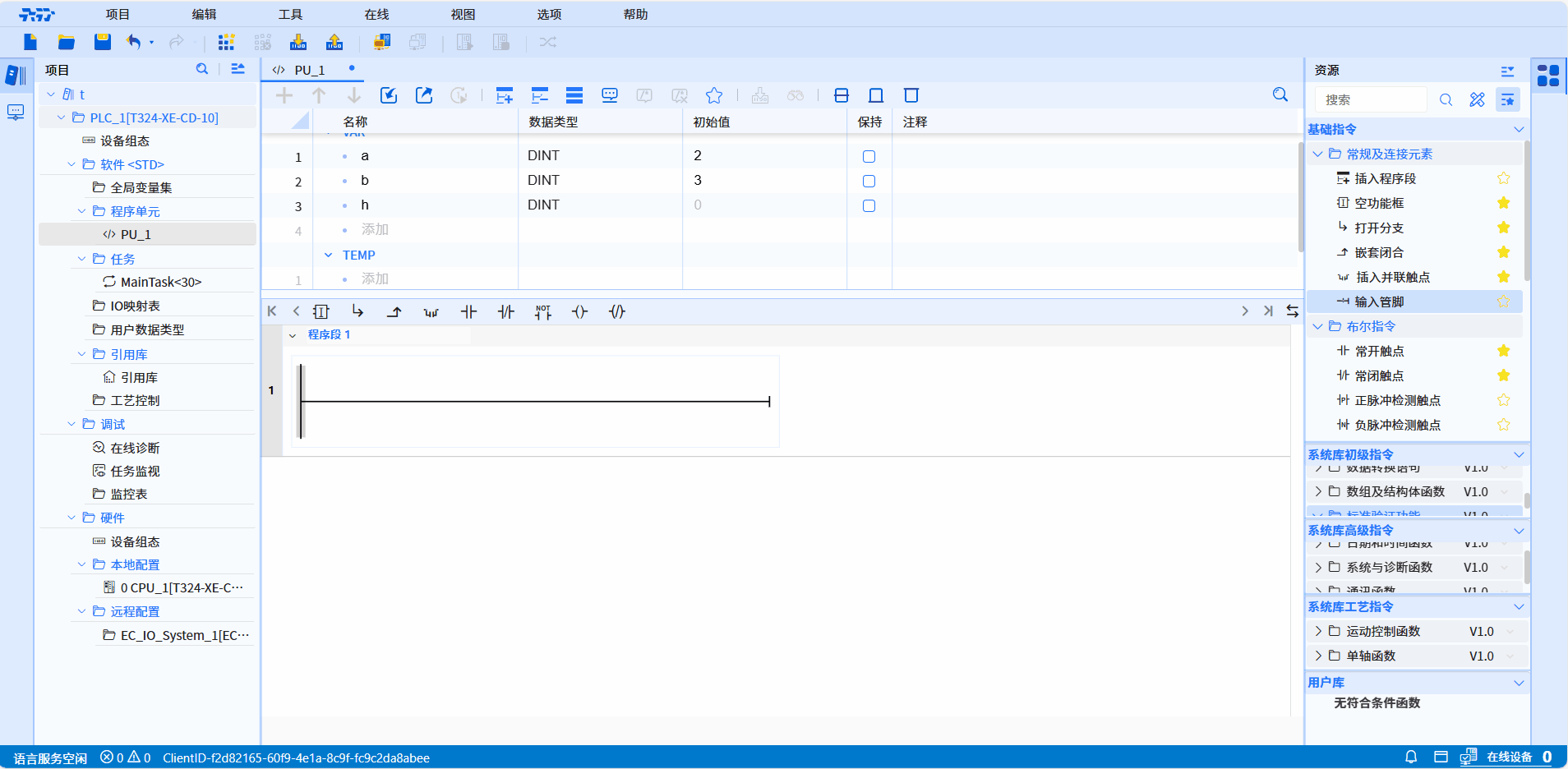

  • Example: alt text
