7.13.5 SPLIT_DATE

Function

Split the DATE date type data into three integer types YEAR, MONTH, and DAY and return it

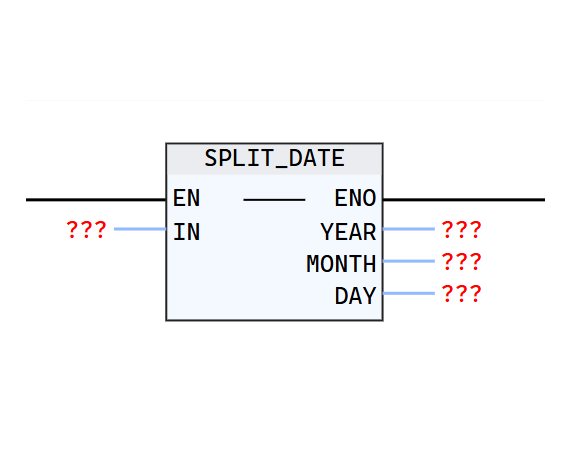

LD graphics

Parameter description

Interface variable	Declaration	Data type	Description
IN	Var_Date	DATE	Date type data
YEAR	Out_Put	INT	Year
MONTH	Out_Put	INT	Month
DAY	Out_Put	INT	Someday

• If the input value is illegal, all output values are 0

Example

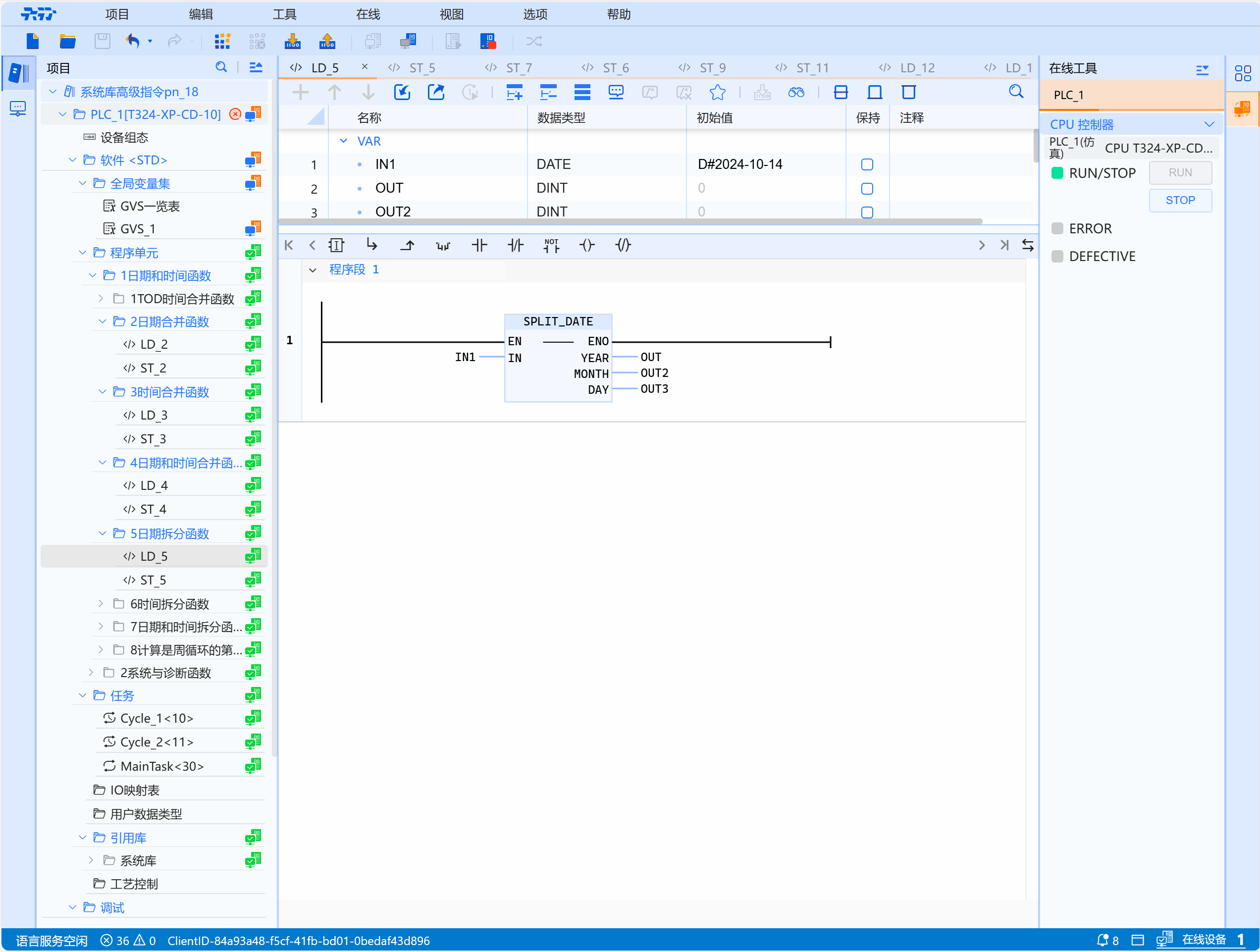

• An LD example is shown in the following animation:

• ST example is shown in the following code:

SPLIT_DATE(
    IN:=IN1,
    YEAR=>OUT,
    MONTH=>OUT2,
    DAY=>OUT3
);
