7.13.7 SPLIT_DT

Function

Split the DT type data into six integer type data outputs, respectively output YEAR, MONTH, DAY, HOUR, MINUTE, SECOND six integer type data

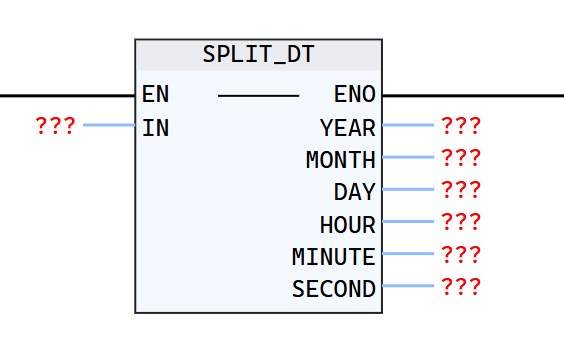

LD graphics

Parameter description

Interface variable	Declaration	Data type	Description
DT	Var_Dt	DT	Date + Time
YEAR	Out_Put	INT	Year
MONTH	Out_Put	INT	Month
DAY	Out_Put	INT	Someday
HOUR	Out_Put	INT	Hour
MINUTE	Out_Put	INT	Minute
SECOND	Out_Put	INT	Second

Example

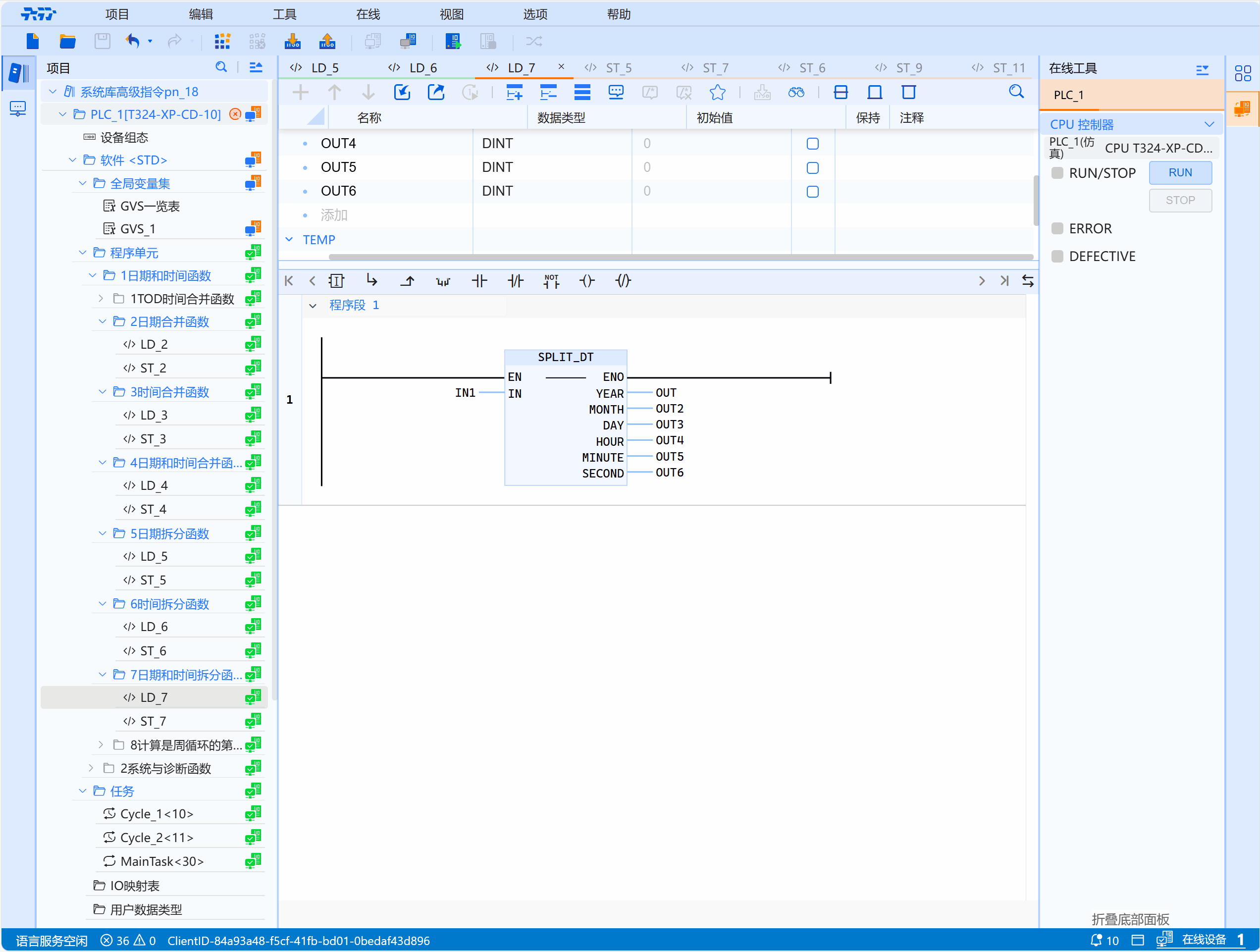

• An LD example is shown in the following animation:

• ST example is shown in the following code:

SPLIT_DT(
    IN:=IN1,
    YEAR=>OUT,
    MONTH=>OUT2,
    DAY=>OUT3,
    HOUR=>OUT4,
    MINUTE=>OUT5,
    SECOND=>OUT6
);
