7.13.6 SPLIT_TOD

Function

Split the time TOD type data into four integer data outputs of HOUR, MINUTE, SECOND and MILLISECOND

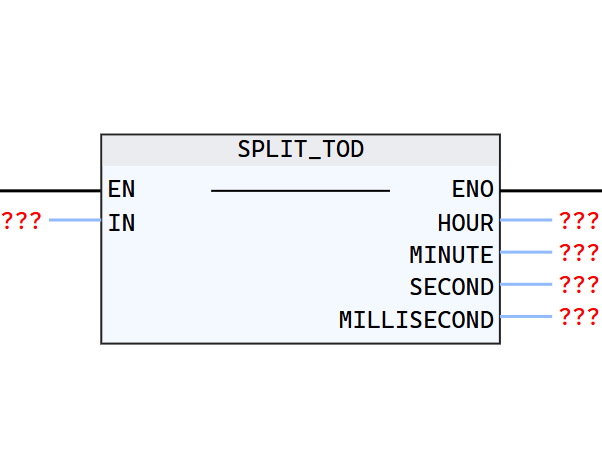

LD graphics

Parameter description

Interface variable	Declaration	Data type	Description
IN	Var_Tod	TOD	Time type
HOUR	Out_Put	INT	Hour
MINUTE	Out_Put	INT	Minute
SECOND	Out_Put	INT	Second
MILLISECOND	Out_Put	INT	Millisecond

• If the input value is illegal, all output values are 0

Example

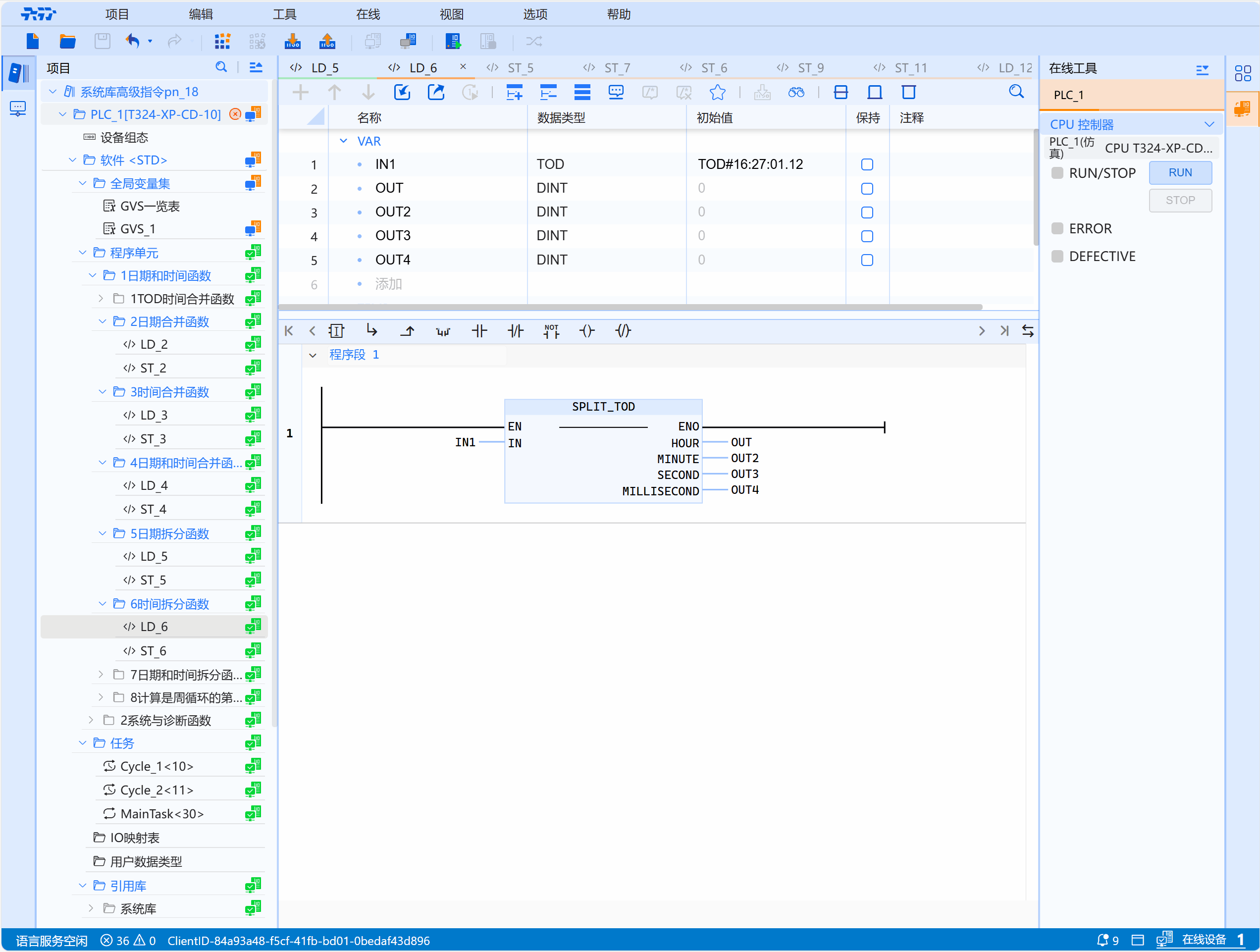

• An LD example is shown in the following animation:

• ST example is shown in the following code:

SPLIT_TOD(
    IN:=IN1,
    HOUR=>OUT,
    MINUTE=>OUT2,
    SECOND=>OUT3,
    MILLISECOND=>OUT4
);
