7.14.1 RD_L_DT

Function​

Use this instruction to read the current local time from the CPU clock and output this time in OUT. When outputting the local time, information about the time zones and start times (which have been set in the configuration of the CPU clock) for Daylight Saving Time and Standard Time are used.

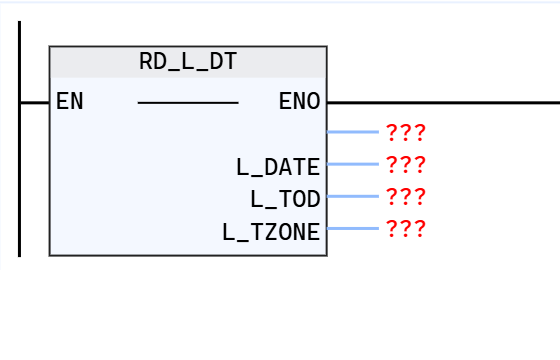

LD graphics​

RD_L_DT

Parameter description​

Interface variablesDeclarationData typeDescription
RD_L_DTReturn valueINTReturn instruction status
L_DATEOut_PutDATELocal date
L_TODOut_PutTODLocal date and time
L_TZONEOut_PutSINTLocal time zone

Return value: RD_L_DT(...)

Return command status (W#16#....)

illustrate

  • 0000 No error.
  • 0001 No error, local time output is daylight saving time.
  • FF00 Unable to read local time.
  • FF01 The current local date cannot be saved because it is outside the range allowed by the L_DATE parameter.
  • FF02 The current local date cannot be saved because it is outside the range allowed by the L_TOD parameter.
  • FF03 The current local time zone L_TZON parameter cannot be saved because it is outside the allowed range (-12 to 11).
  • In the program editor, error codes can be displayed as integers or hexadecimal.

Example​

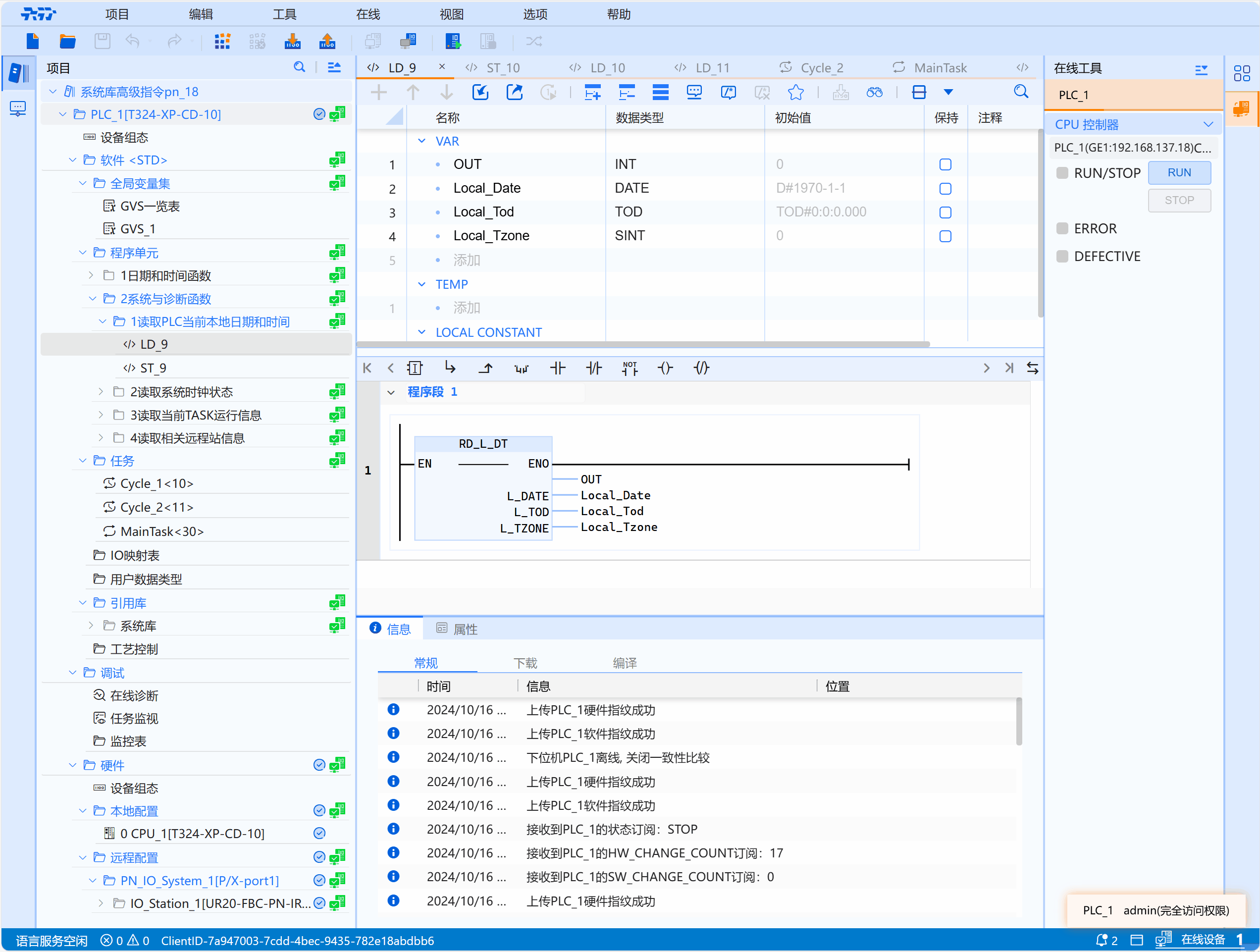

  • An LD example is shown in the following animation:

RD_L_DT_GIF

  • ST example is shown in the following code:

Definition reference:
Local_Date:DATE;
Local_Tod:TOD;
Local_Tzone:SINT;
OUT:INT;

Code implementation:
OUT:=RD_L_DT(L_DATE=>Local_Date,L_TOD=>Local_Tod,L_TZONE=>Local_Tzone);
