7.14.3 RD_TASKINFO

Function

Read the information of the current TASK

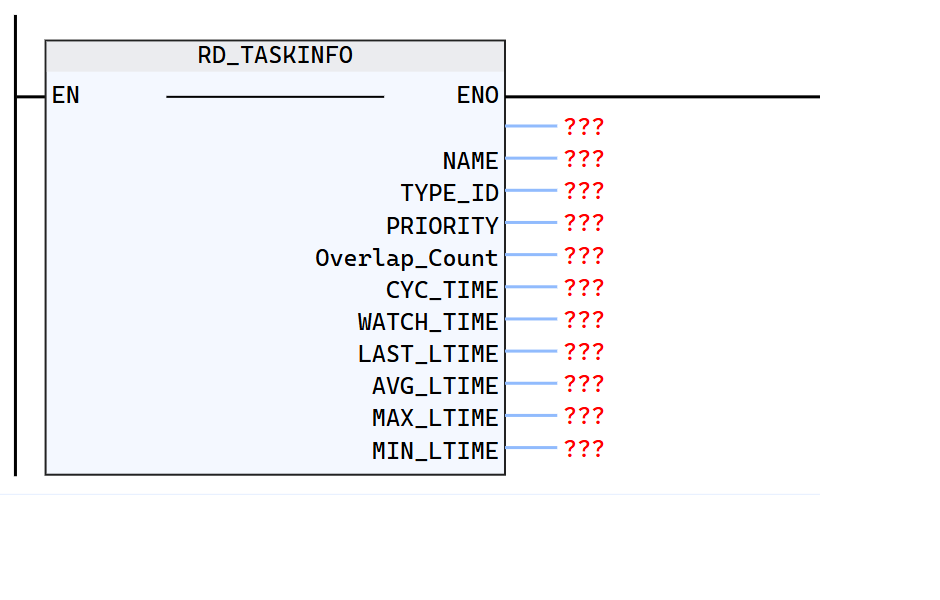

LD graphics

Parameter description

Interface variables	Declaration	Data type	Description
RD_TASKINFO	Return value	INT	Return instruction status
NAME	Out_Put	STRING	The task name as defined in the task configuration
TYPE_ID	Out_Put	INT	Display task type
PRIORITY	Out_Put	INT	Display the priority of the task
Overlap_Count	Out_Put	INT	Overlap case: If the task targeted by the new trigger is an already running task, the new trigger will be discarded. Each time a task trigger is discarded, the counter is incremented by one. The task overlap count is 0, indicating that the task is executed normally, and a non-zero value indicates that the interrupt cycle needs to be extended.
CYC_TIME	Out_Put	TIME	Configured cycle time (ms), only valid for periodic cycle tasks.
WATCH_TIME	Out_Put	TIME	Task configured watchdog time (ms)
LAST_LTIME	Out_Put	LTIME	The execution time of the previous task cycle, in ns
AVG_LTIME	Out_Put	LTIME	The average execution time required for the task, in ns
MAX_LTIME	Out_Put	LTIME	Maximum task execution time, unit is ns
MIN_LTIME	Out_Put	LTIME	Minimum task execution time, unit is ns

Return value: RD_TASKINFO (...)

Return command status (W#16#....)

illustrate

• 0000 No error.
• FF00 Unable to read current TASK status.
• In the program editor, error codes can be displayed as integers or hexadecimal.

Example

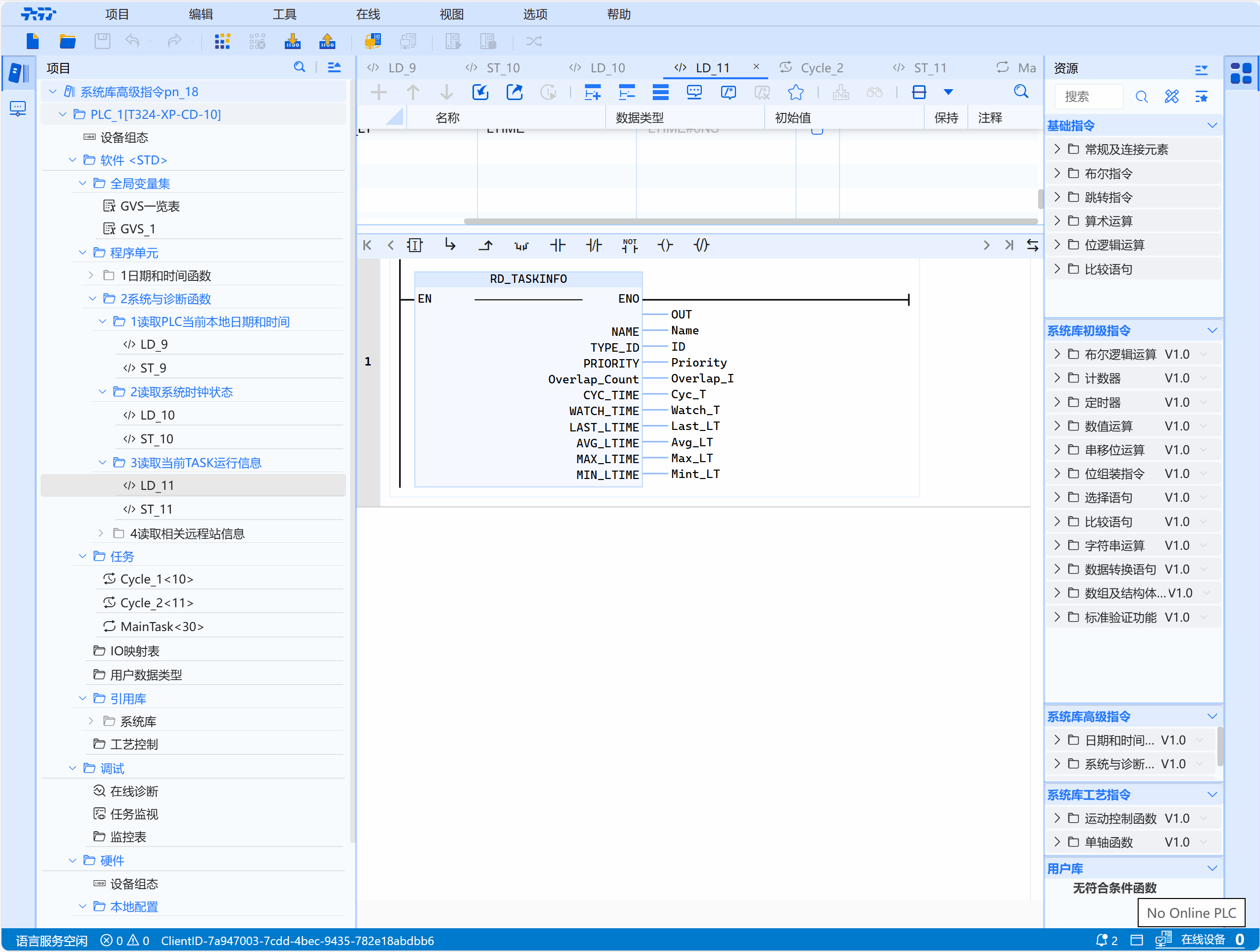

• An LD example is shown in the following animation:

• ST example is shown in the following code:

Definition reference:
Name: STRING;
ID:INT;
Priority:INT;
Overlap_I:INT;
Cyc_T TIME;
Watch_T:TIME;
Last_LT:LTIME;
Avg_LT:LTIME;
Max_LT:LTIME;
Mint_LT:LTIME;
OUT3:INT;

Code implementation:
OUT3:=RD_TASKINFO(
    NAME=>name,
    TYPE_ID=>ID,
    PRIORITY=>Priority,
    Overlap_Count=>Overlap_I,
    CYC_TIME=>Cyc_T,
    WATCH_TIME=>Watch_T,
    LAST_LTIME=>Last_LT,
    AVG_LTIME=>Avg_LT,
    MAX_LTIME=>Max_LT,
    MIN_LTIME=>Mint_LT
);
