7.6.2 PACK_BITS_TO_WORD

Function

Realize the combination of 16 BOOL input quantities BIT0--BIT15 into a WORD return value

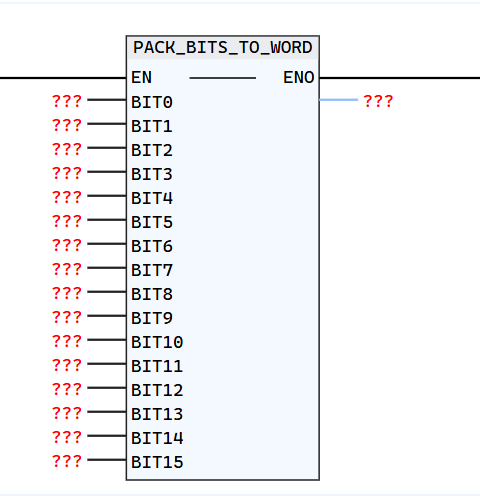

LD graphics

Parameter description

Interface Variable	Declaration	Type	Description
BIT0	Var_Input	BOOL	bit0 of the WORD return value
BIT1	Var_Input	BOOL	bit1 of the WORD return value
BIT2	Var_Input	BOOL	bit2 of the WORD return value
BIT3	Var_Input	BOOL	bit3 of the WORD return value
BIT4	Var_Input	BOOL	bit4 of the WORD return value
BIT5	Var_Input	BOOL	bit5 of the WORD return value
BIT6	Var_Input	BOOL	bit6 of the WORD return value
BIT7	Var_Input	BOOL	bit7 of the WORD return value
BIT8	Var_Input	BOOL	bit8 of the WORD return value
BIT9	Var_Input	BOOL	bit9 of the WORD return value
BIT10	Var_Input	BOOL	bit10 of the WORD return value
BIT11	Var_Input	BOOL	bit11 of the WORD return value
BIT12	Var_Input	BOOL	bit12 of the WORD return value
BIT13	Var_Input	BOOL	bit13 of the WORD return value
BIT14	Var_Input	BOOL	bit14 of the WORD return value
BIT15	Var_Input	BOOL	bit15 of the WORD return value
Function name	Return value	WORD	Converted result

Example

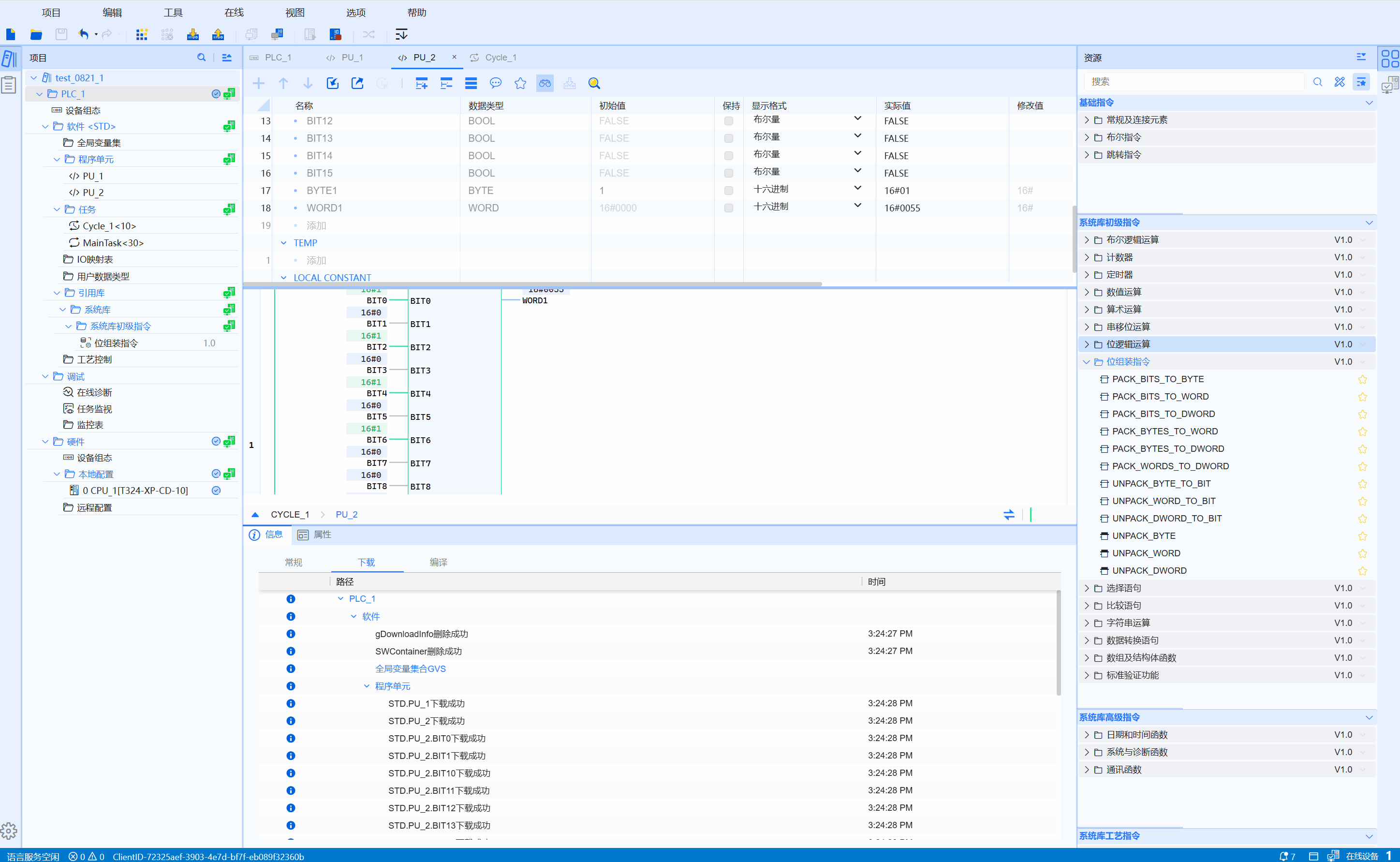

• LD sample animation is as follows:

• ST example is shown in the following code:

OUT:=PACK_BITS_TO_WORD(
    BIT0:=1,
    BIT1:=1,
    BIT2:=1,
    BIT3:=1,
    BIT4:=1,
    BIT5:=1,
    BIT6:=1,
    BIT7:=1,
    BIT8:=1,
    BIT9:=1,
    BIT10:=1,
    BIT11:=1,
    BIT12:=0,
    BIT13:=1,
    BIT14:=0,
    BIT15:=1
    );
