7.6.5 PACK_BYTES_TO_DWORD

Function

Implementation of combining 4 BYTE input quantities into a DWORD return value

LD graphics

Parameter description

Interface Variable	Declaration	Type	Description
HH_Byte	Var_Input	BYTE	HH_BYTE assigned to the WORD return value
HL_Byte	Var_Input	BYTE	HL_BYTE assigned to the WORD return value
LH_Byte	Var_Input	BYTE	LH_BYTE assigned to the WORD return value
LL_Byte	Var_Input	BYTE	LL_BYTE assigned to the WORD return value
Function name	Return value	WORD	Converted result

Example

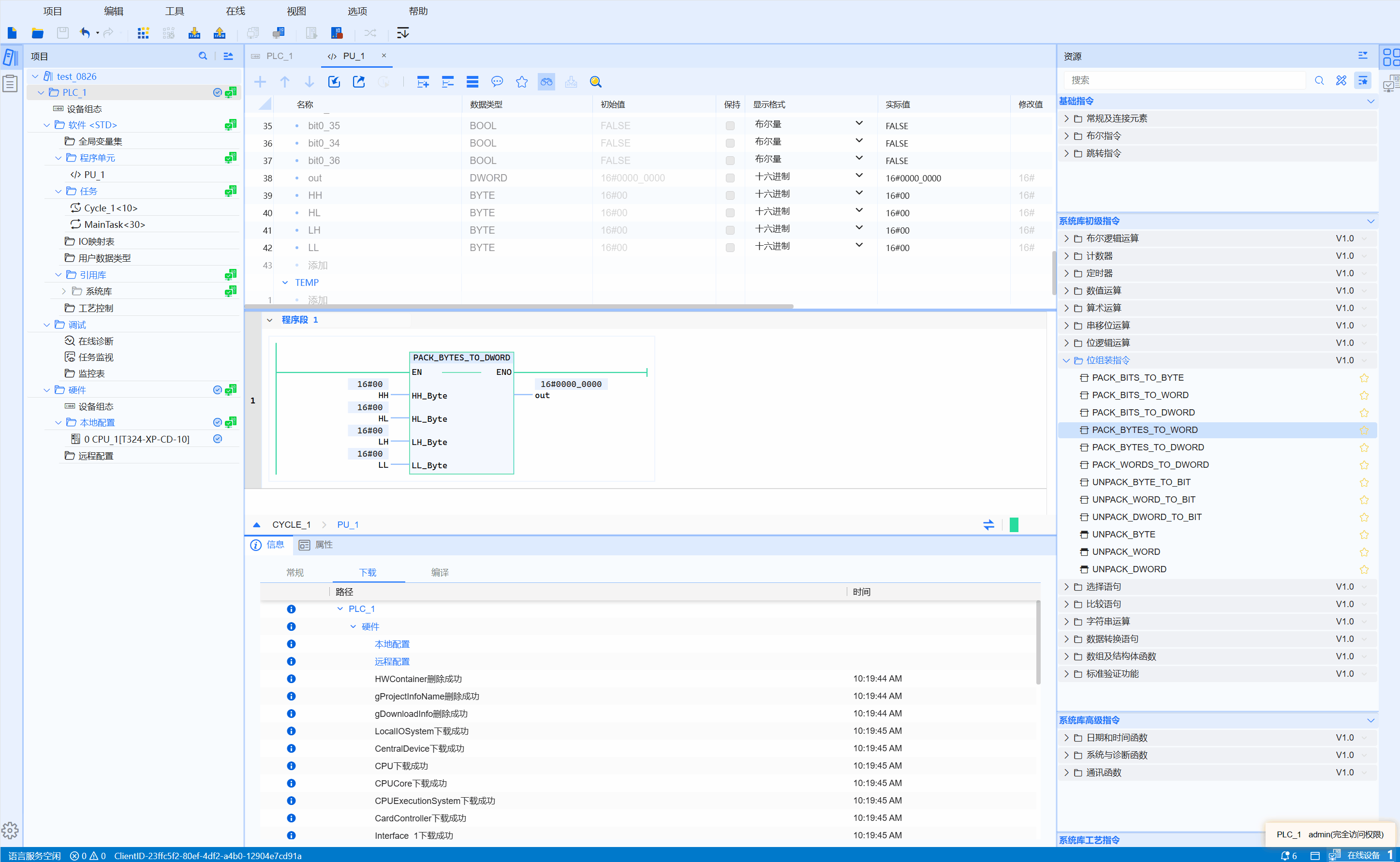

• LD sample animation is as follows:

• ST example is shown in the following code:

OUT:=PACK_BYTES_TO_DWORD(
    HH_Byte:=hhVar,
    HL_Byte:=hlVar,
    LH_Byte:=lhVar,
    LL_Byte:=llVar
    );
