7.6.4 PACK_BYTES_TO_WORD

Function

Implementation of combining 2 BYTE input quantities into a WORD return value

LD graphics

Parameter description

Interface Variable	Declaration	Type	Description
High_Byte	Var_Input	BYTE	The high BYTE assigned to the WORD return value
Low_Byte	Var_Input	BYTE	The low BYTE assigned to the WORD return value
Function name	Return value	WORD	Converted result

Example

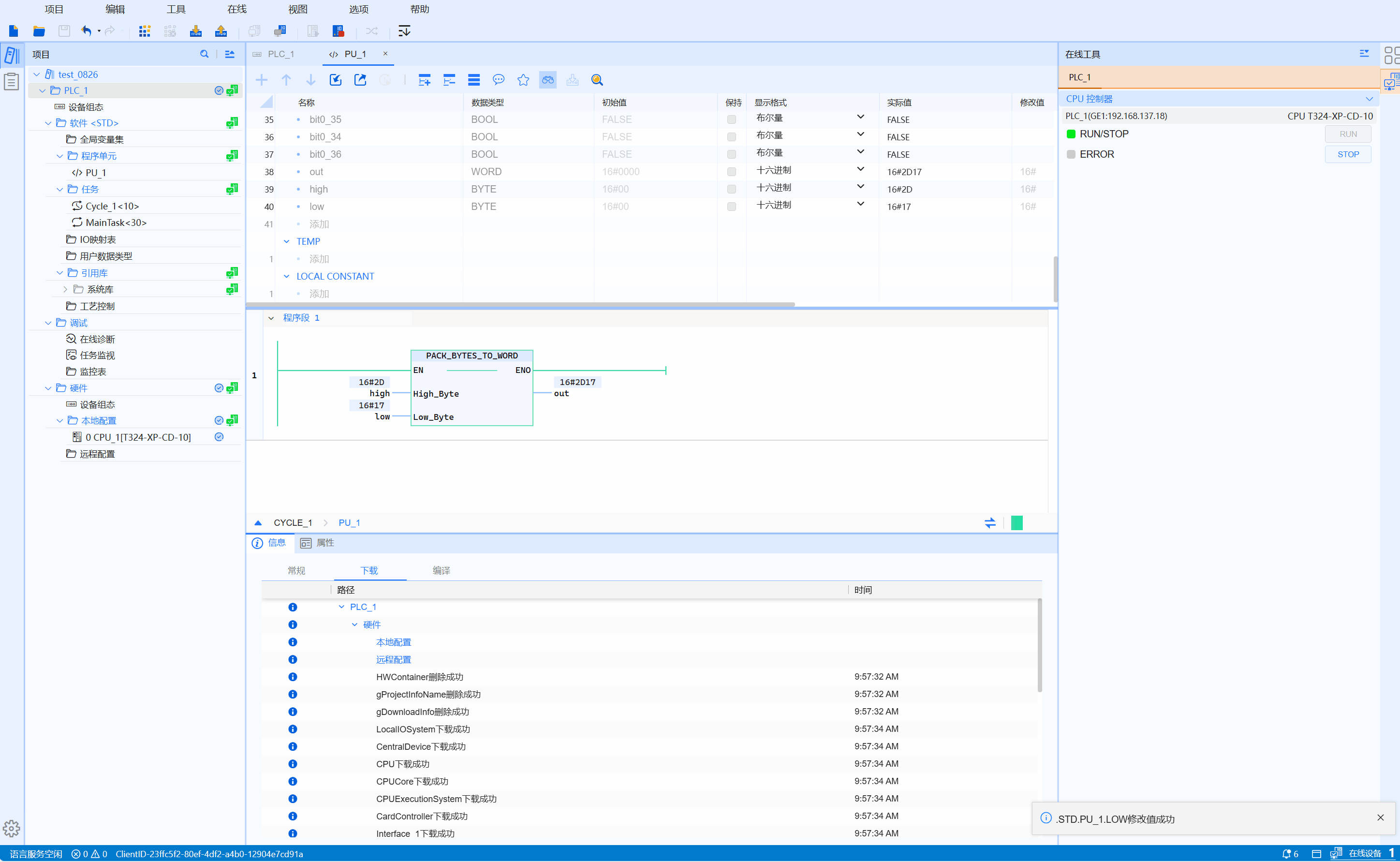

• LD sample animation is as follows:

• ST example is shown in the following code:

OUT:=PACK_BYTES_TO_WORD(High_Byte:=hVar,Low_Byte:=lVar);
