7.6.8 UNPACK_WORD_TO_BIT

Function

Realize the disassembly and output of 1 WORD input into 16 BOOLs

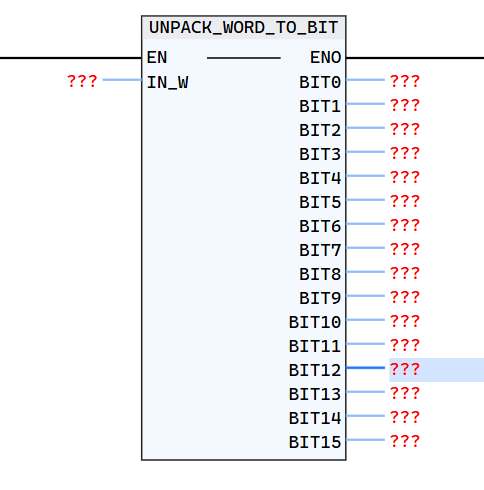

LD graphics

Parameter description

Interface Variable	Declaration	Type	Description
Out_BY	Var_Input	WORD	WORD input
BIT0	Var_Output	BOOL	Value input bit0 of WORD
BIT1	Var_Output	BOOL	Value input bit1 of WORD
BIT2	Var_Output	BOOL	Value input bit2 of WORD
BIT3	Var_Output	BOOL	Value input bit3 of WORD
BIT4	Var_Output	BOOL	Value input bit4 of WORD
BIT5	Var_Output	BOOL	Value input bit5 of WORD
BIT6	Var_Output	BOOL	Value input bit6 of WORD
BIT7	Var_Output	BOOL	Value input bit7 of WORD
BIT8	Var_Output	BOOL	Value input bit8 of WORD
BIT9	Var_Output	BOOL	Value input bit9 of WORD
BIT10	Var_Output	BOOL	Value input bit10 of WORD
BIT11	Var_Output	BOOL	Value input bit11 of WORD
BIT12	Var_Output	BOOL	Value input bit12 of WORD
BIT13	Var_Output	BOOL	Value input bit13 of WORD
BIT14	Var_Output	BOOL	Value input bit14 of WORD
BIT15	Var_Output	BOOL	Value input bit15 of WORD

Example

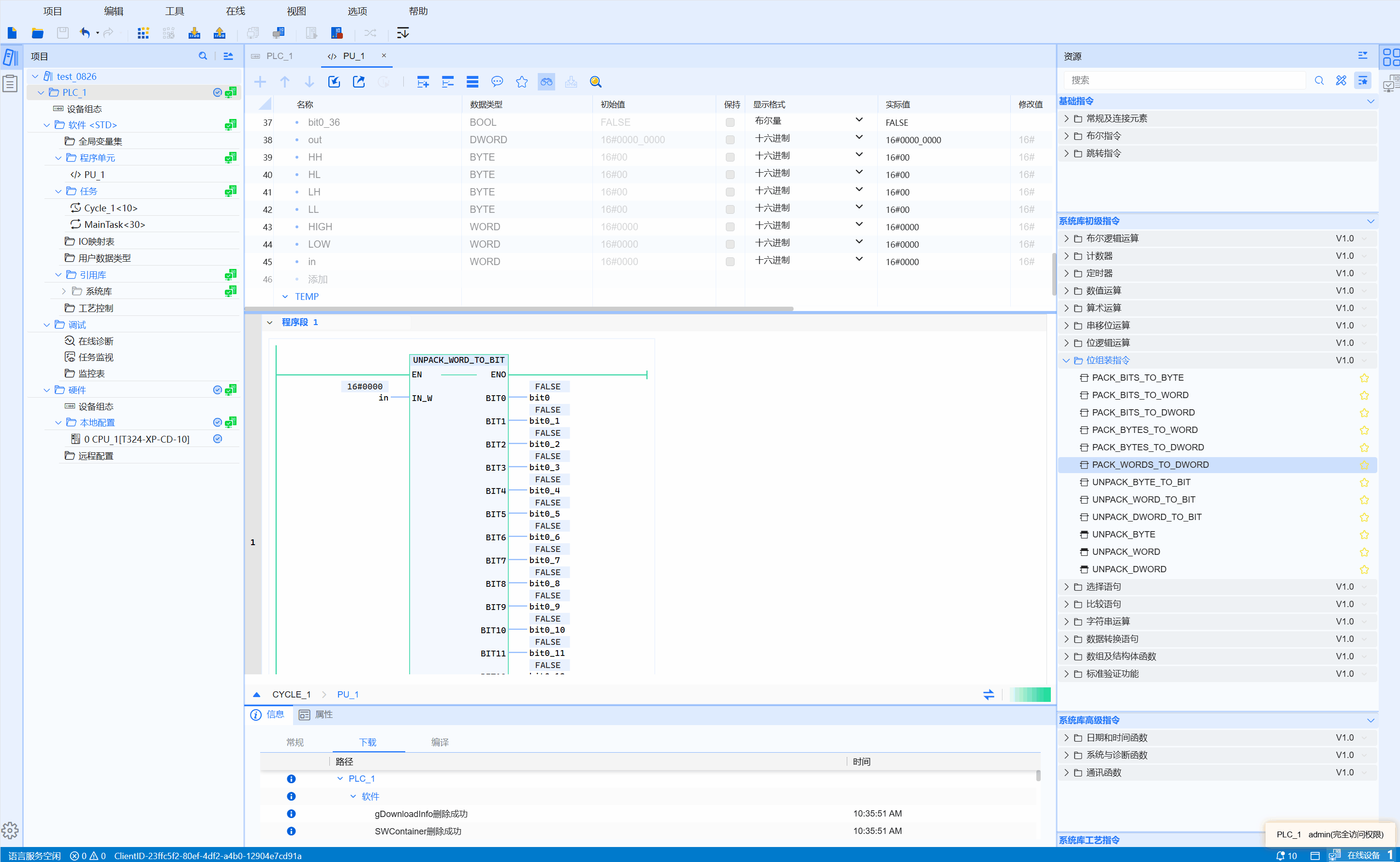

• LD sample animation is as follows:

• ST example is shown in the following code:

UNPACK_WORD_TO_BIT(
    IN_W:=IN1,
    BIT0=>bVar0,
    BIT1=>bVar1,
    BIT2=>bVar2,
    BIT3=>bVar3,
    BIT4=>bVar4,
    BIT5=>bVar5,
    BIT6=>bVar6,
    BIT7=>bVar7,
    BIT8=>bVar8,
    BIT9=>bVar9,
    BIT10=>bVar10,
    BIT11=>bVar11,
    BIT12=>bVar12,
    BIT13=>bVar13,
    BIT14=>bVar14,
    BIT15=>bVar15
);
