7.6.1 PACK_BITS_TO_BYTE

Function

Implement the combination of 8 BOOL input quantities BIT0--BIT7 into one BYTE return value

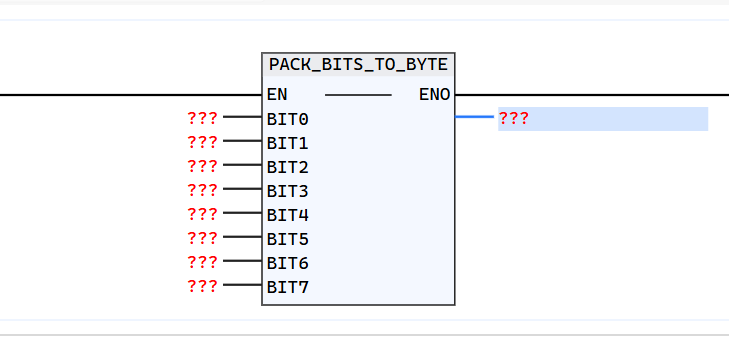

LD graphics

Parameter description

Interface Variable	Declaration	Type	Description
BIT0	Var_Input	BOOL	bit0 of the BYTE return value
BIT1	Var_Output	BOOL	bit1 of the BYTE return value
BIT2	Var_Output	BOOL	bit2 of the BYTE return value
BIT3	Var_Output	BOOL	bit3 of the BYTE return value
BIT4	Var_Output	BOOL	bit4 of the BYTE return value
BIT5	Var_Output	BOOL	bit5 of the BYTE return value
BIT6	Var_Output	BOOL	bit6 of the BYTE return value
BIT7	Var_Output	BOOL	bit7 of the BYTE return value
Function name	Return value	BYTE	Converted result

Example

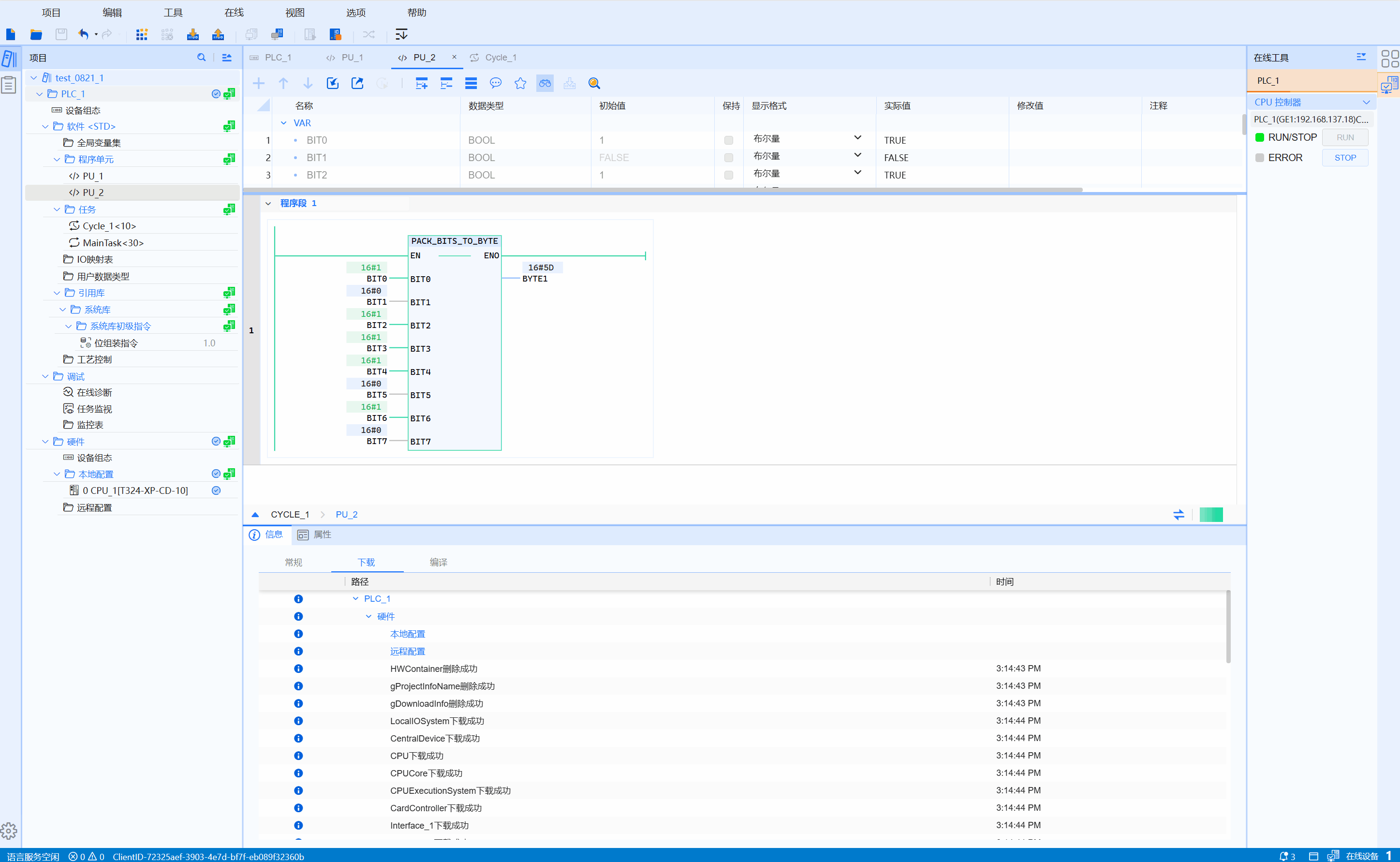

• LD sample animation is as follows:

• ST example is shown in the following code:

OUT:=PACK_BITS_TO_BYTE(
    BIT0:=0,
    BIT1:=1,
    BIT2:=0,
    BIT3:=1,
    BIT4:=1,
    BIT5:=1,
    BIT6:=1,
    BIT7:=1
);
