7.6.3 PACK_BITS_TO_DWORD

Function

Realize the combination of 32 BOOL input quantities BIT0~BIT31 into a DWORD return value

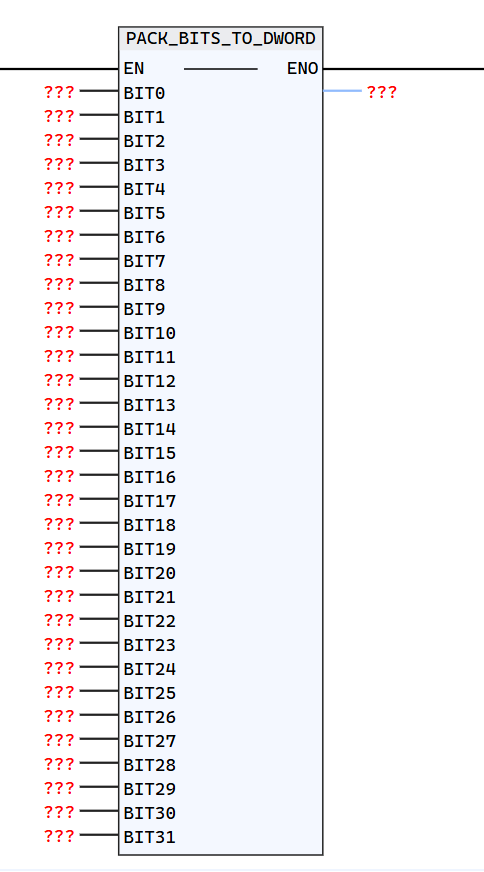

LD graphics

Parameter description

Interface Variable	Declaration	Type	Description
BIT0	Var_Input	BOOL	bit0 of the DWORD return value
BIT1	Var_Input	BOOL	bit1 of the DWORD return value
BIT2	Var_Input	BOOL	bit2 of the DWORD return value
BIT3	Var_Input	BOOL	bit3 of the DWORD return value
BIT4	Var_Input	BOOL	bit4 of the DWORD return value
BIT5	Var_Input	BOOL	bit5 for the DWORD return value
BIT6	Var_Input	BOOL	bit6 of the DWORD return value
BIT7	Var_Input	BOOL	bit7 for the DWORD return value
BIT8	Var_Input	BOOL	bit8 for the DWORD return value
BIT9	Var_Input	BOOL	bit9 for the DWORD return value
BIT10	Var_Input	BOOL	bit10 of the DWORD return value
BIT11	Var_Input	BOOL	bit11 of the DWORD return value
BIT12	Var_Input	BOOL	bit12 of the DWORD return value
BIT13	Var_Input	BOOL	bit13 of the DWORD return value
BIT14	Var_Input	BOOL	bit14 of the DWORD return value
BIT15	Var_Input	BOOL	bit15 of the DWORD return value
BIT16	Var_Input	BOOL	bit16 of the DWORD return value
BIT17	Var_Input	BOOL	bit17 of the DWORD return value
BIT18	Var_Input	BOOL	bit18 of the DWORD return value
BIT19	Var_Input	BOOL	bit19 of the DWORD return value
BIT20	Var_Input	BOOL	bit20 of the DWORD return value
BIT21	Var_Input	BOOL	bit21 of the DWORD return value
BIT22	Var_Input	BOOL	bit22 of the DWORD return value
BIT23	Var_Input	BOOL	bit23 of the DWORD return value
BIT24	Var_Input	BOOL	bit24 of the DWORD return value
BIT25	Var_Input	BOOL	bit25 of the DWORD return value
BIT26	Var_Input	BOOL	bit26 of the DWORD return value
BIT27	Var_Input	BOOL	bit27 of the DWORD return value
BIT28	Var_Input	BOOL	bit28 of the DWORD return value
BIT29	Var_Input	BOOL	bit29 of the DWORD return value
BIT30	Var_Input	BOOL	bit30 of the DWORD return value
BIT31	Var_Input	BOOL	bit31 of the DWORD return value
Function name	Return value	WORD	Converted result

Example

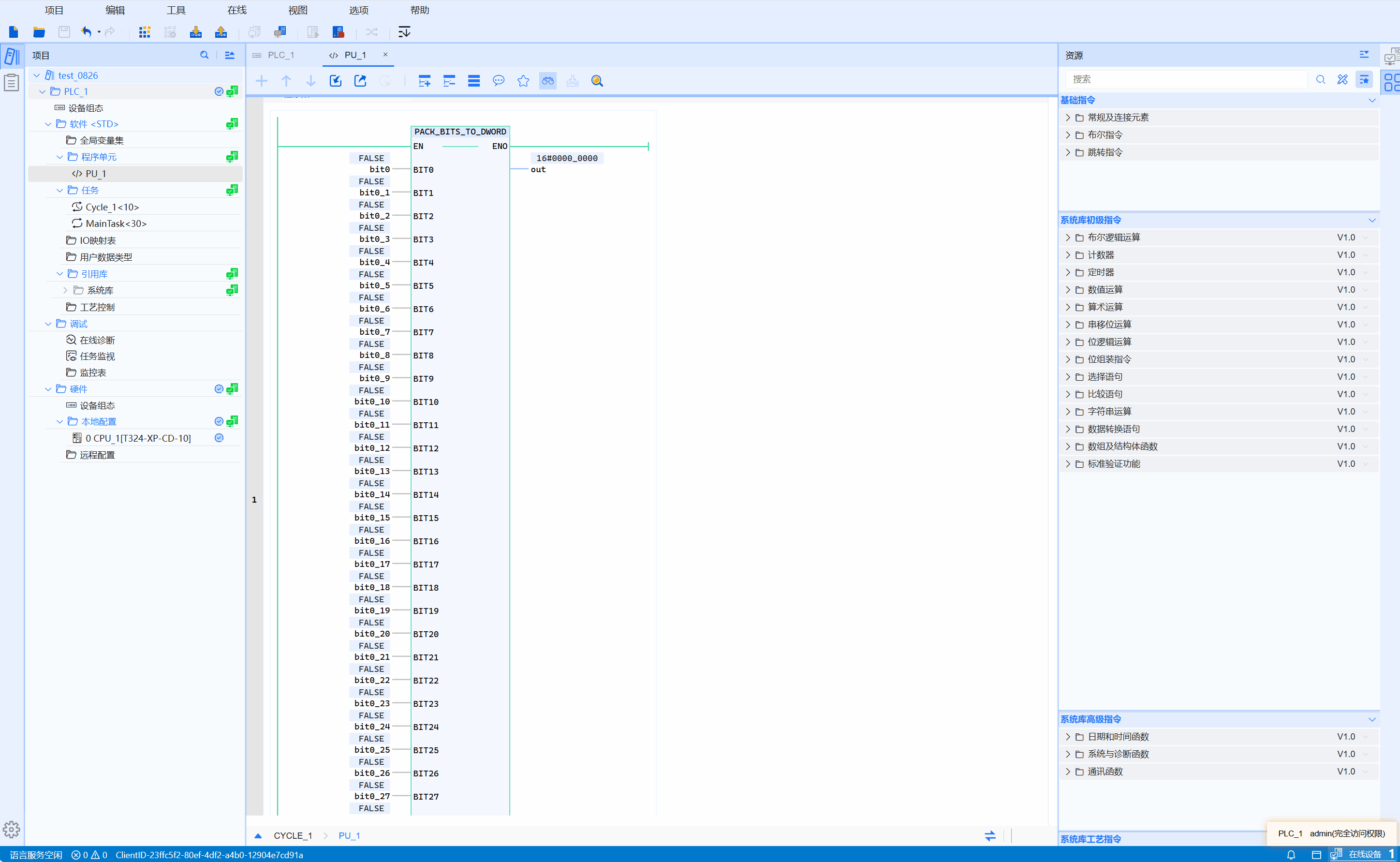

• LD sample animation is as follows:

• ST example is shown in the following code:

OUT:=PACK_BITS_TO_WORD(
    BIT0:=1,
    BIT1:=1,
    BIT2:=1,
    BIT3:=1,
    BIT4:=1,
    BIT5:=1,
    BIT6:=1,
    BIT7:=1,
    BIT8:=1,
    BIT9:=1,
    BIT10:=1,
    BIT11:=1,
    BIT12:=0,
    BIT13:=1,
    BIT14:=0,
    BIT15:=1
    );
