7.6.11 UNPACK_WORD

Function

Achieve disassembly and output of 1 WORD input into 2 BYTE and 16 BOOL

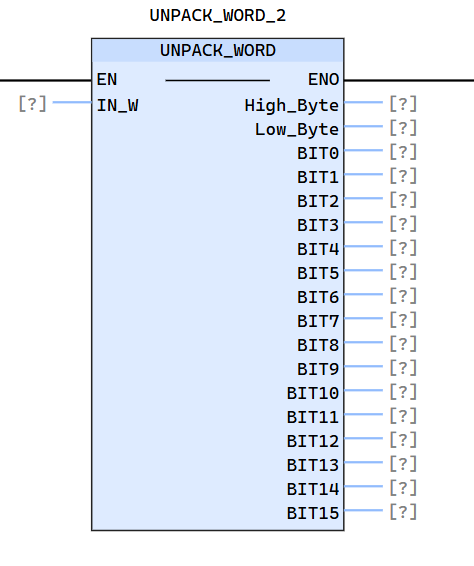

LD graphics

Parameter description

Interface Variable	Declaration	Type	Description
IN_W	Var_Input	WORD	WORD input amount
High_Byte	Var_Output	BYTE	The high BYTE of the value input WORD
Low_Byte	Var_Output	BYTE	The low BYTE of the value input WORD
BIT0	Var_Output	BOOL	Value input bit0 of BYTE
BIT1	Var_Output	BOOL	Value input bit1 of BYTE
BIT2	Var_Output	BOOL	Value input bit2 of BYTE
BIT3	Var_Output	BOOL	Value input bit3 of BYTE
BIT4	Var_Output	BOOL	Value input bit4 of BYTE
BIT5	Var_Output	BOOL	Value input bit5 of BYTE
BIT6	Var_Output	BOOL	Value input bit6 of BYTE
BIT7	Var_Output	BOOL	Value input bit7 of BYTE

Example

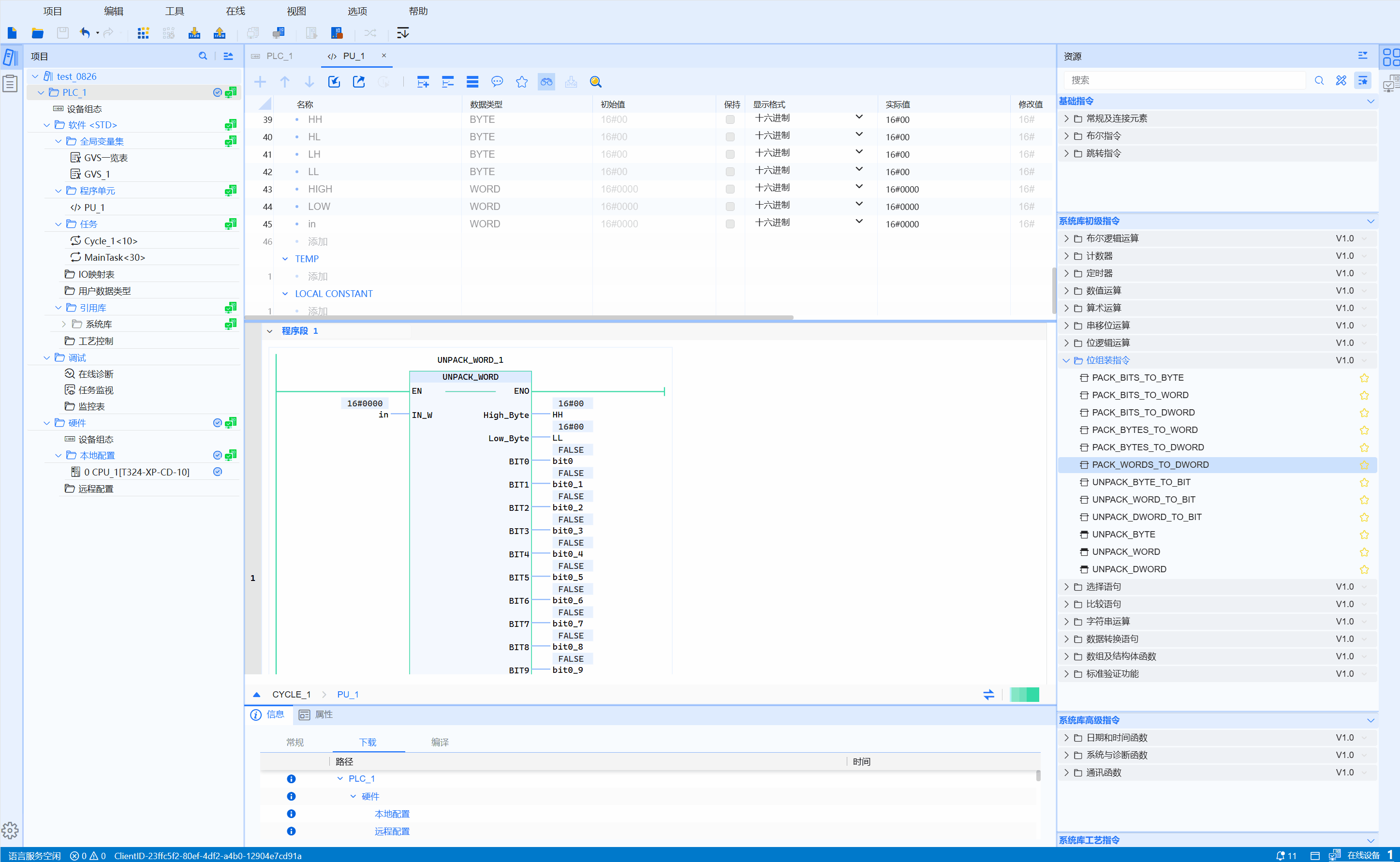

• LD sample animation is as follows:

• ST example is shown in the following code:

UNPACK_WORD_1(
    IN_W:=IN1,
    High_Byte=>hVar,
    Low_Byte=>lVar,
    BIT0=>bVar0,
    BIT1=>bVar1,
    BIT2=>bVar2,
    BIT3=>bVar3,
    BIT4=>bVar4,
    BIT5=>bVar5,
    BIT6=>bVar6,
    BIT7=>bVar7,
    BIT8=>bVar8,
    BIT9=>bVar9,
    BIT10=>bVar10,
    BIT11=>bVar11,
    BIT12=>bVar12,
    BIT13=>bVar13,
    BIT14=>bVar14,
    BIT15=>bVar15
);
