7.16.17 MC_GEAROUT

Function

This function block will detach the axis from the master axis and the slave axis will maintain the current speed

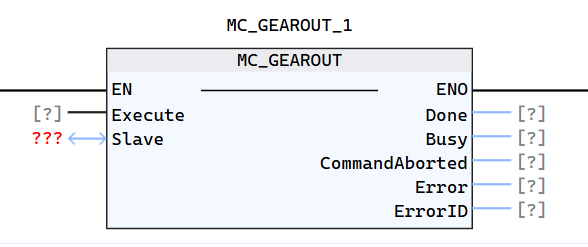

LD graphics

Parameter description

Parameters	Type	Declaration	Description	Remarks
Slave	AXIS	VAR_IN_OUT	Slave axis
Execute	BOOL	VAR_OUT	Rising edge activation
Done	BOOL	VAR_OUT	Disengagement completed
Busy	BOOL	VAR_OUT	Whether there is a valid output for FB, True:FB is not terminated
CommandAborted	BOOL	VAR_OUT	The command was terminated by another command
Error	BOOL	VAR_OUT	An error signal has occurred within the FB
ErrorID	WORD	VAR_OUT	Error ID
